IPR1FAD2

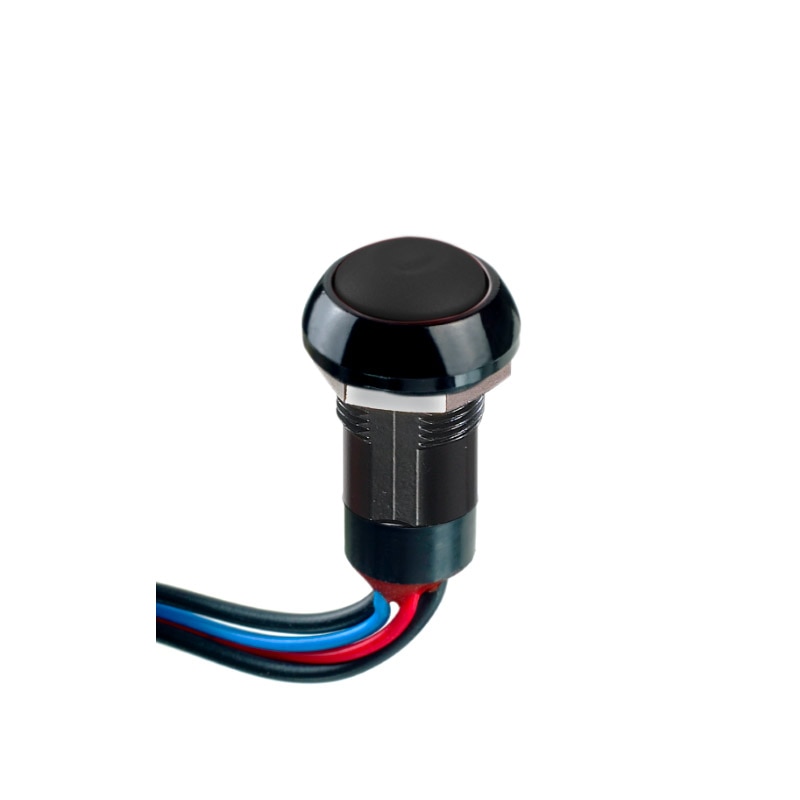

The IPR1FAD2 Panel Switch, with its Part Number IPR1FAD2, is a versatile and reliable solution for various applications. Its Actuator Types, or Types d'actionneurs, include round curved options that provide a comfortable grip and smooth operation. The Electrical Functions, or Fonctions électriques, of this switch are OFF and ON, allowing for easy control and power management. The Contacts, or Kontakte, are made of silver goldplated material, ensuring excellent conductivity and long-lasting performance. Trust the IPR1FAD2 Panel Switch to deliver seamless operation and dependable functionality.
Key Features
- Actuator Colors: Black
- Electrical Functions: ON OFF
- Contact Materials: Silver (Gold-Plated)
Specifications
Distinctive Features:
- Latching action
- Illuminated or non-illuminated
- Compact
- Flat round actuator for optional marking
- Sealed to IP67
General Specifications:
- Panel thickness : 1,5 mm (.059) min. , 4 mm (.157 max.)
- Total travel :Funct. 3 : 1,7 mm (.067) +/- 0,3 mmFunct. 5 : 1,3 mm (.051) +/- 0,3 mm
- Typical operating force : 6N +/- 2N
- Low level/mech. life : 1.000.000 cycles
- Torque : 1,5 Nm max. applied to nut
- Soldering : 320°C max. for 3 sec.
Environmental Specifications:
- Front panel sealing : IP67 according to IEC 60529, IP69K according to DIN 40050-9 (non-illuminated) with cap U5125
- Shock resistance : 100 g according to IEC 512-4, test 6c
- Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d
- Salt spray : IEC 512-6, test 11f
- Robustness (non-illuminated) : IK06 according to EN 50102 (1 joule)
- Operating temperature : -40°C to +85°C
Electrical Specifications:
- Max. current/voltage rating with resistive load (gold plated silver contacts):5A 28VDC, 70.000 cycles0,2A 48VDC, 500.000 cycles0,5A 48VAC, 500.000 cycles
- Initial contact resistance : 100 mΩ max.
- Insulation resistance : 1 GΩ min. at 500VDC
- Dielectric strength : 1.500 Vrms
- Contact bounce : 10 ms
