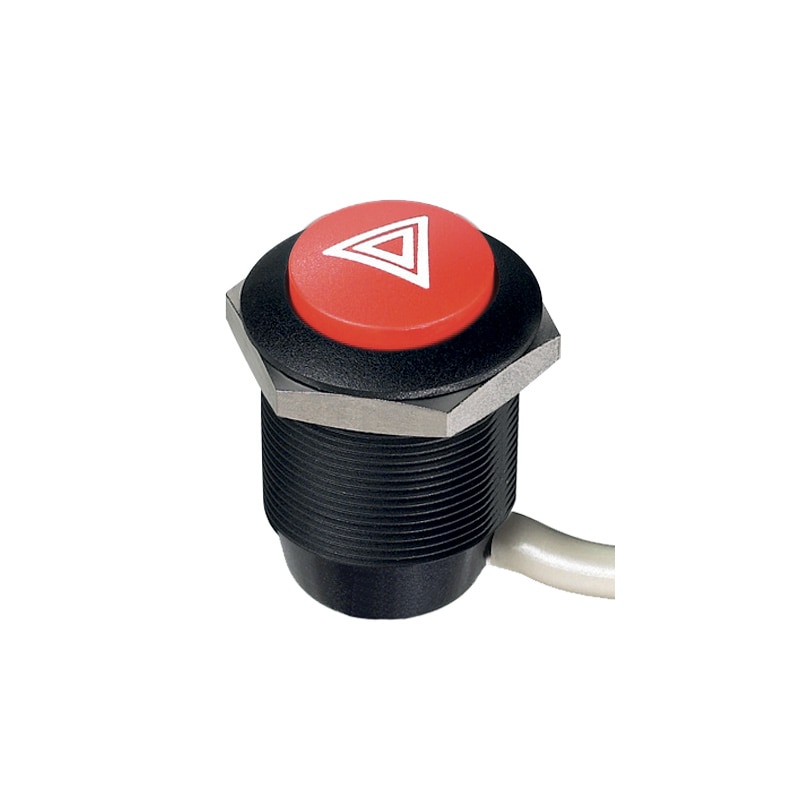

FPAR1D3422C0213
The FPAR1D3422C0213 Panel Switch is designed to provide reliable and efficient electrical functions. With its sleek design and user-friendly interface, it is perfect for various applications. The switch features a convenient right angle cable with a length of 300 mm, ensuring easy installation and flexibility. Whether you need to switch between ON and OFF or perform other electrical functions, this Panel Switch is the ideal choice.
Key Features
- LED Color: Red
- Actuator Colors: Black
- Actuators: Round, Curved
- Electrical Functions: ON OFF
- Bezel Color: Black
- Contact Materials: Silver Gold-Plated
- Led Control And No Of Poles: Independent 2 Poles
- Led Resistors: No Resistor Supplied
- Markings: Laser
- Model: Threaded Bushing 24mm (0.944in)
- Terminals: Right Angle Cable
- Symbols: Hazard Warning
Specifications
Distinctive Features:
- Full actuator or symbol illumination
- Snap-in and threaded bushing models
- Large but lightweight
- Pad printed or laser etched symbols
General Specifications:
- Panel thickness : 1(.039) to 18 mm (.708) max.
- Total travel : 2.5 mm ± 0.5 mm
- Typical operating force : 8 N ± 2 N
- Low level or mechanical life :- Momentary models : 1 million cycles- Latching models : 200,000 cycles
- Torque : 3 Nm max. applied to nut
Environmental Specifications:
- Front panel sealing : IP69K according to DIN 40050-9
- Operating temperature : -40 °C to +75 °C
Electrical Specifications:
- Max. current/voltage rating with resistive load :- silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC
- Initial contact resistance : 50 mΩ max.
- Insulation resistance : 1 GΩ min. at 500 VDC
- Dielectric strength : 1,000 Vrms 50 Hz min.
- Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles
