FDAP3C1282F2E

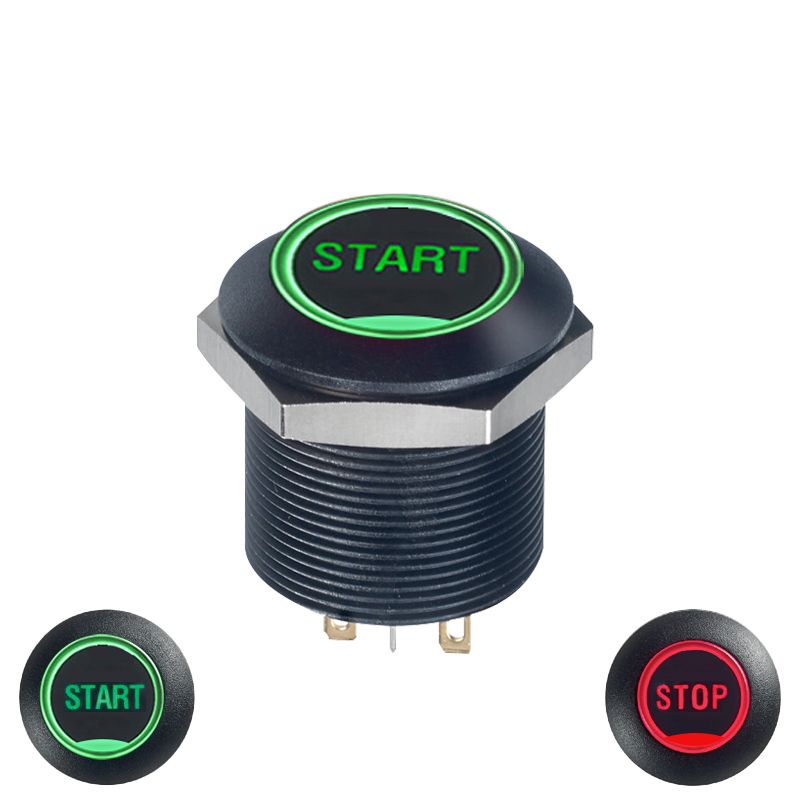

The FDAP3C1282F2E Panel Switch, also known as a Pushbutton Switch, is a versatile and reliable option for various electrical applications. Its actuator type is round and flat, providing a comfortable and easy-to-use interface. With a normally open electrical function, it allows for seamless control and operation. The switch is designed for solder lugs mounting, ensuring a secure and stable connection.
Key Features
- LED Color: Red/Green
- Actuator Colors: Smoke Black
- Electrical Functions: Normally Open (NO)
- Mounting: Solder Lug
- Bezel Color: Black
- Contact Materials: Silver
- Led Control And No Of Poles: Independent LED 1-Pole
- Led Resistors: 24V Resistor
- Model: Threaded Bushing 24mm (0.944in)
- Symbols: On Green, Off Red, With Ring
Specifications
Distinctive Features:
- Double icon actuator
- Snap-in and threaded bushing models
- Large but lightweight
- Sealed to IP69K (threaded bushing version)
General Specifications:
- Panel thickness :- Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket- Threaded bushing version :1(.039) to 18 mm (.708) max.
- Total travel : 2.5 mm ± 0.5 mm
- Typical operating force : 8 N ± 2 N
- Low level or mechanical life :- Momentary models : 1 million cycles- Latching models : 200,000 cycles
- Torque : 3 Nm max. applied to nut
Environmental Specifications:
- Front panel sealing :- Threaded bushing version : IP69K according to DIN 40050-9- Snap-in version : IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness
- Operating temperature : -40 °C to +75 °C
Electrical Specifications:
- Max. current/voltage rating with resistive load :- silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC
- Initial contact resistance : 50 mΩ max.
- Insulation resistance : 1 GΩ min. at 500 VDC
- Dielectric strength : 1,000 Vrms 50 Hz min.
- Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles
