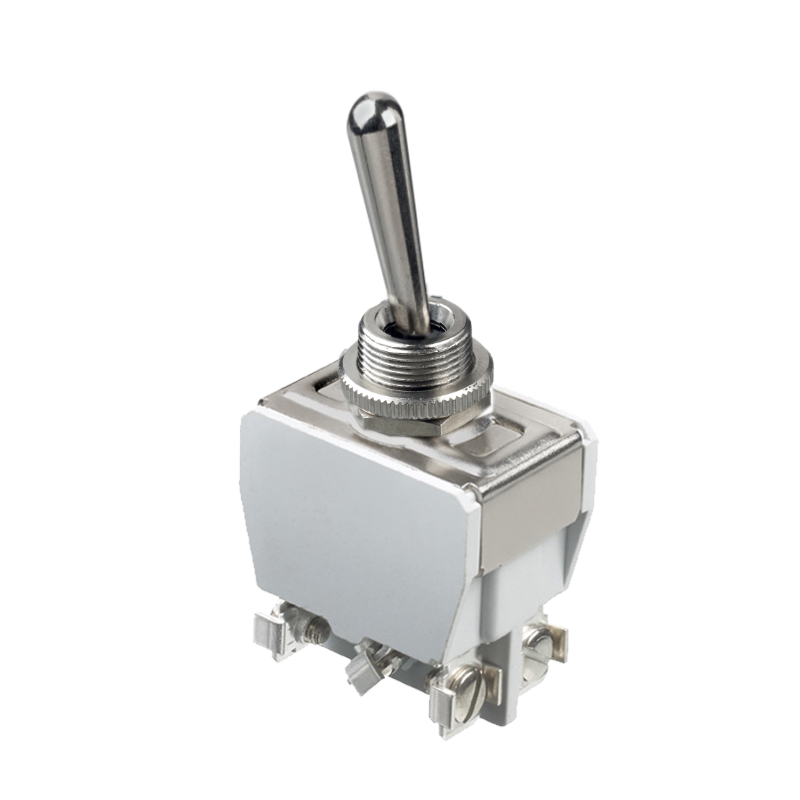

647HT-5
The 647HT-5 Panel Switch, with its Part Number, is a versatile and reliable choice for various applications. Featuring a double pole configuration, it provides enhanced electrical functionality. With MOM OFF MOM functionality, it offers effortless switching between states. The switch is equipped with metal lever screw terminals, ensuring secure and durable connections. Whether you're in need of a reliable toggle switch for your project, the 647HT-5 is the perfect solution.
Key Features
- Number Of Poles: Double Pole
- Actuator Option: 40mm (1.574in) actuator
- Electrical Functions: MOM OFF MOM
- Options: Tropicalized Case
- Terminals: Metal Lever Screw Terminals
Specifications
Distinctive Features:
- Robust mechanism
- High current/voltage rating
- Insulated or metal lever
- UL, CSA and NF-VDE (EN 61058-1) approved
General Specifications:
- Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
- Panel thickness: 4.5 mm (.177) max. between 2 nuts
Environmental Specifications:
- Operating temperature : -20 °C to +55 °C (-20 °F to 131 °F)
Electrical Specifications:
- Max. current/voltage ratings: see full data sheet
- Peak current: 30 A max. during 1/2 sine, 250 VAC
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1,000 MΩ min. at 500 VDC
- Dielectric strength:2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between terminals and frame
- Electrical life: 10,000 cycles at full load
