631H/2GK

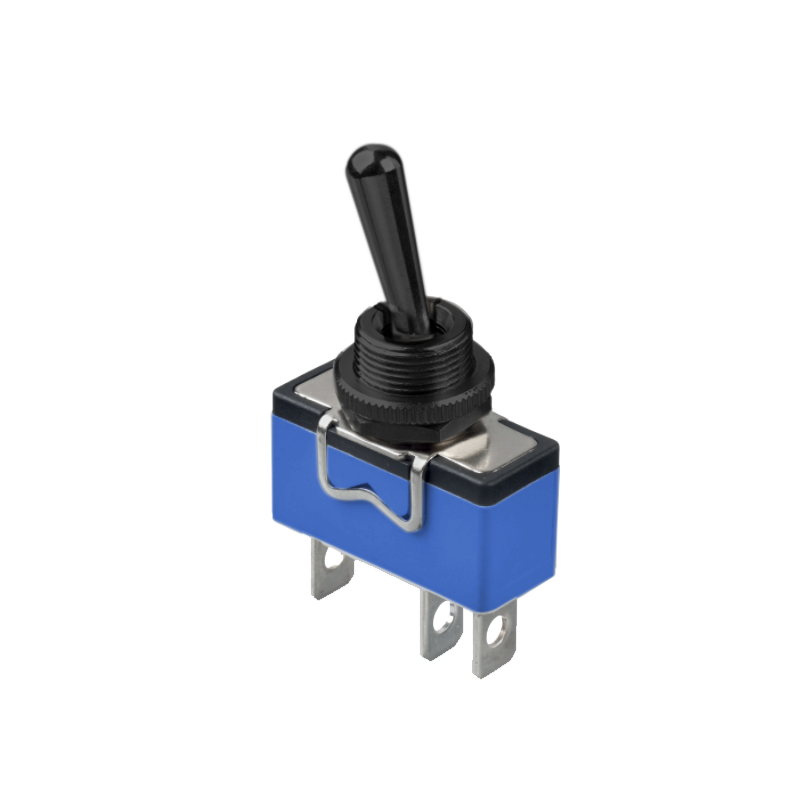

The 631H/2GK Panel Switch, with its Part Number 631H/2GK, belongs to the Toggles category. This versatile switch offers a single pole configuration, making it suitable for various applications. Its electrical functions include the essential ON and OFF states, providing reliable control over your electrical circuits. The switch is equipped with sturdy metal lever solder lug quick-connect terminals, ensuring secure connections for your wiring needs.
Key Features
- Number Of Poles: Single Pole
- Electrical Functions: ON OFF
- Options: Black Finish Front Panel Sealing
- Terminals: Metal Lever Solder Lug Quick Connect Terminals
Specifications
Distinctive Features:
- Robust mechanism
- High current/voltage rating
- Insulated or metal lever
- UL, CSA and NF-VDE (EN 61058-1) approved
General Specifications:
- Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
- Panel thickness: 4.5 mm (.177) max. between 2 nuts
Environmental Specifications:
- Operating temperature : -20 °C to +55 °C (-20 °F to 131 °F)
Electrical Specifications:
- Max. current/voltage ratings: see full data sheet
- Peak current: 30 A max. during 1/2 sine, 250 VAC
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1,000 MΩ min. at 500 VDC
- Dielectric strength:2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between terminals and frame
- Electrical life: 10,000 cycles at full load
