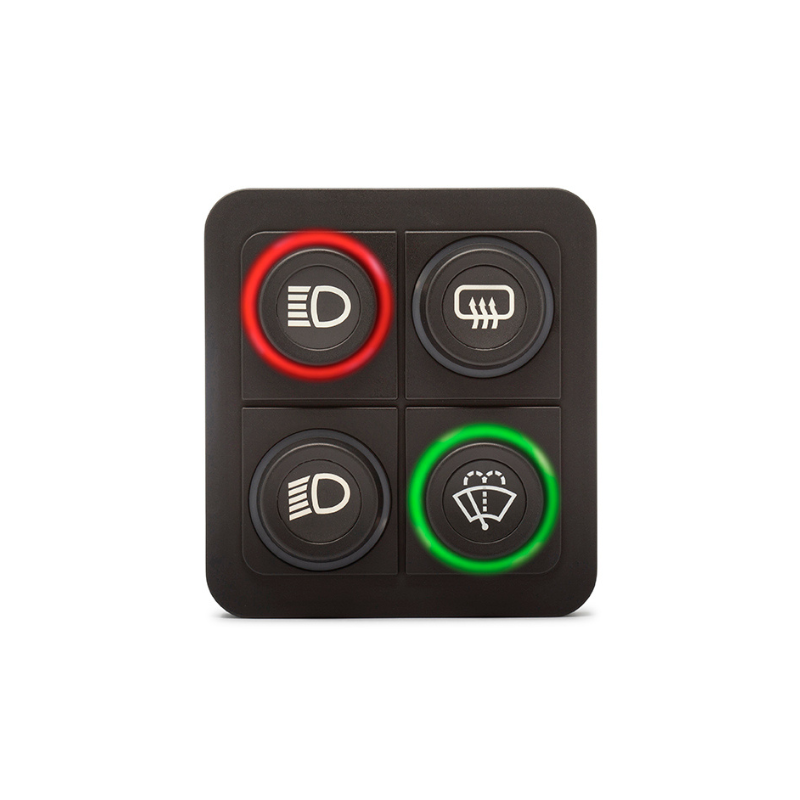

PKI
Modular CANbus keypad with last-minute snappable inserts.
The PKI series is a highly modular keypad solution designed for rugged environments and applications requiring flexibility, clear feedback, and fast reconfiguration. With replaceable laser-etched icon inserts available in two sizes (15 mm and 24 mm), the PKI allows full customization to suit changing user needs or evolving machine functionalities.
Integrated CANopen and J1939 protocols make it easy to embed into modern vehicle systems, while high IP protection ensures reliable performance in outdoor and high-vibration environments.
Its tactile, glove-friendly buttons, RGB LED rings, and multiple layout options, from 1 to 15 keys, make the PKI Series a go-to HMI for construction, agriculture, defense, and e-transport machinery.
General specifications:
- RGB rings and icon backlighting
- Actuation life: 3 million operations
- Sealing: IP67 / IP69K
- UV Resistance: UVB 400 hrs
- Operating Temperature: -40°C to +70°C
- Storage Temperature: -40°C to +85°C
- Supply voltage: 12–24V DC nominal (8–32V DC range)
