QS63XXW28

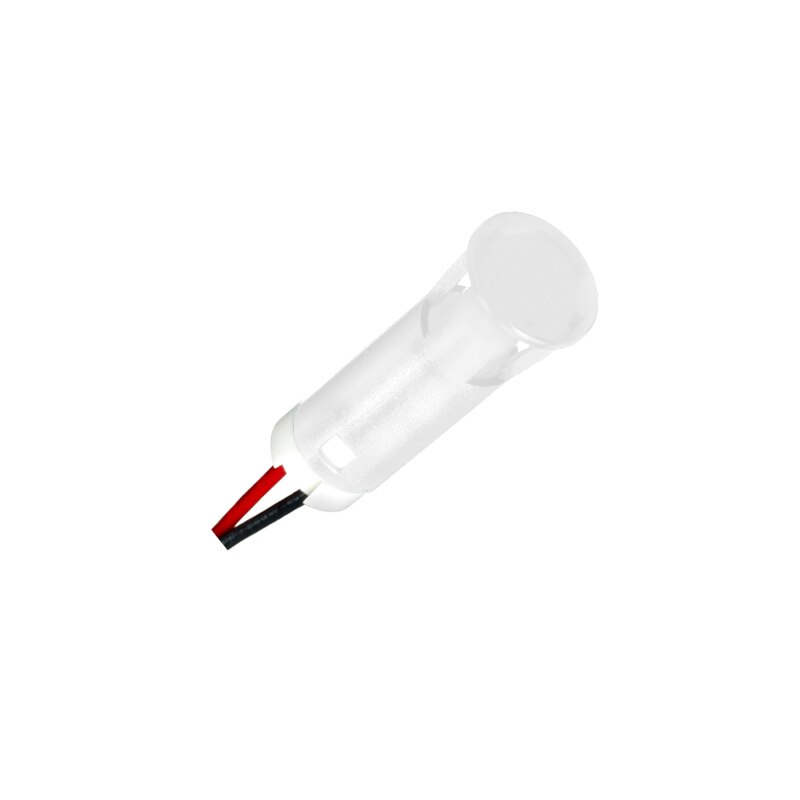

Introducing the QS63XXW28 LED Indicator, your solution for clear and reliable visual notifications. With a 6 mm Mounting Hole, it can be easily installed in various applications. The Terminals allow for convenient connection with wires. The Type Of Illumination is Fixed Light, providing a steady and constant indication. The LED Color is White clear, ensuring visibility even in bright environments. Operating at a Voltage of 28 VDC, this LED Indicator is suitable for a wide range of industrial and commercial settings.

Key Features
- Mounting Hole: 6 mm
- LED Color: White Clear
- Voltage: 28V DC
- Terminals: Wires
- Type Of Illumination: Fixed Light
Specifications
Distinctive Features:
- Front panel snap-in mounting requires no additional hardware
- Standard intensity diffused LED or high brightness LEDfor daylight viewing
General Specifications:
- Max Reverse Voltage: 5V
- Viewing Angle: 30–100° (dependant on model)
- Life Expectancy: 100,000 hours
- Operating Temperature Range: –30 to +65°C
Electrical Specifications:
- 02 (No Resistor) 1.8 to 2.5VDC 20mA max*
- 6VDC 5.4 to 6.6VDC 20mA
- 12VDC 10.8 to 13.2VDC 20mA
- 24VDC 21.6 to 26.4VDC 20mA
- 28VDC 25.2 to 30.8VDC 20mA
- 110VAC (not available on QS6) 99 to 110VAC 6mA
- 220VAC (not available on QS6) 207 to 253VAC 3mA
