QS123XXHO24

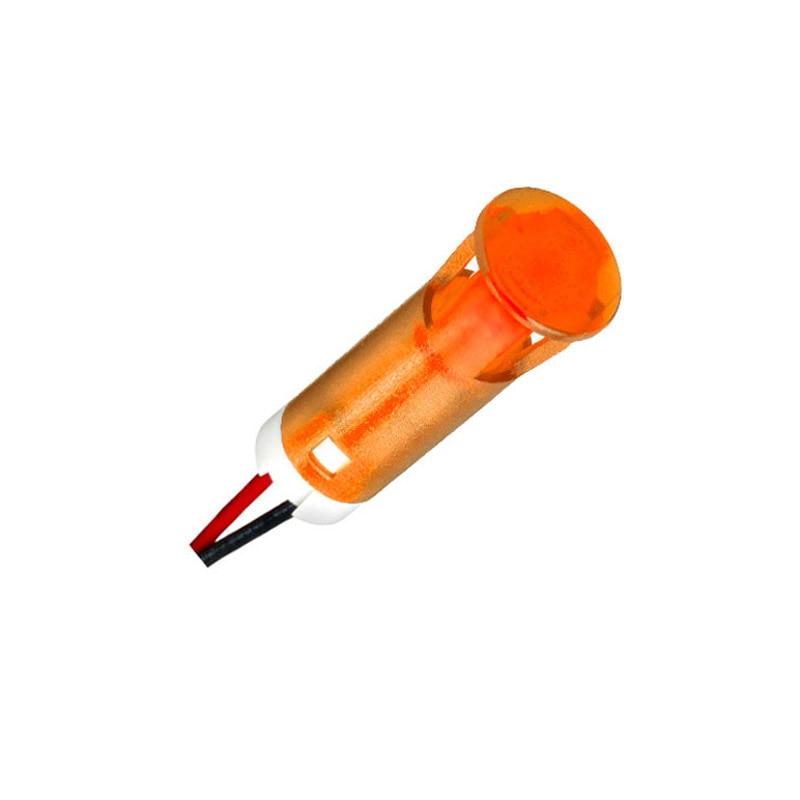

The QS123XXHO24 LED Indicator is a versatile and reliable solution for all your illumination needs. With a mounting hole diameter of 12mm, it can be easily installed in various applications. The indicator comes with convenient terminals for easy wiring, ensuring a hassle-free installation process. Thanks to its fixed light illumination type, you can count on a steady and consistent glow. The LED color of this indicator is a vibrant and attention-grabbing hyper bright orange. Powered by a voltage of 24VDC, this LED indicator delivers a powerful and efficient performance.
Key Features
- Mounting Hole: 12 mm
- LED Color: Hyper Bright Orange
- Voltage: 24VDC
- Terminals: Wires
- Type Of Illumination: Fixed Light
Specifications
Distinctive Features:
- Front panel snap-in mounting requires no additional hardware
- Standard intensity diffused LED or high brightness LEDfor daylight viewing
General Specifications:
- Max Reverse Voltage: 5V
- Viewing Angle: 30–100° (dependant on model)
- Life Expectancy: 100,000 hours
- Operating Temperature Range: –30 to +65°C
Electrical Specifications:
- 02 (No Resistor) 1.8 to 2.5VDC 20mA max*
- 6VDC 5.4 to 6.6VDC 20mA
- 12VDC 10.8 to 13.2VDC 20mA
- 24VDC 21.6 to 26.4VDC 20mA
- 28VDC 25.2 to 30.8VDC 20mA
- 110VAC (not available on QS6) 99 to 110VAC 6mA
- 220VAC (not available on QS6) 207 to 253VAC 3mA
