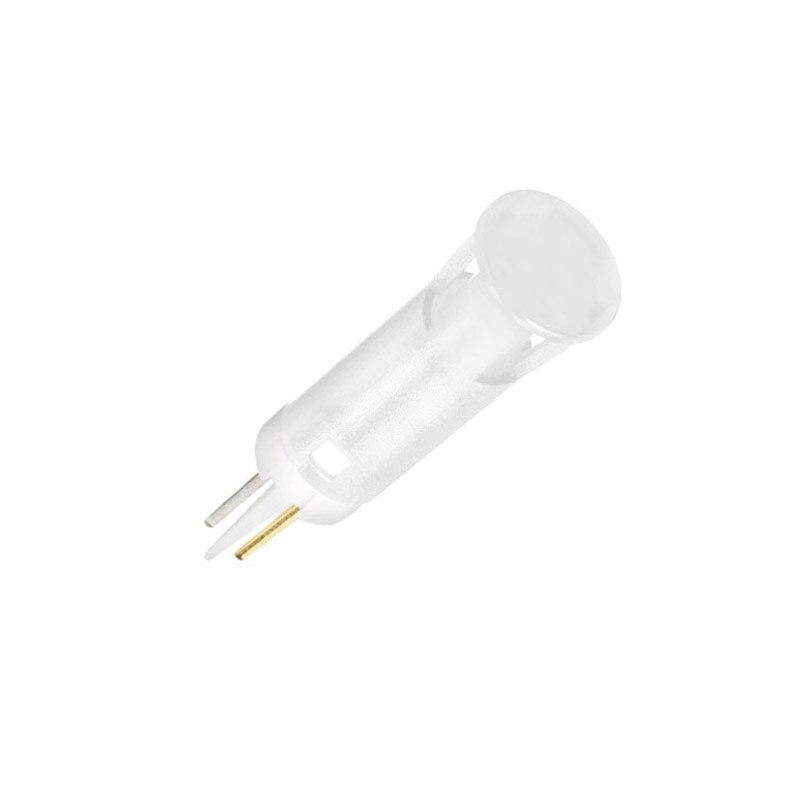

QS121XXW12
The QS121XXW12 LED Indicator is a versatile and reliable lighting solution for various applications. With a 12 mm mounting hole, it can be easily installed in any suitable location. The solder lug faston terminals ensure a secure and efficient connection. Featuring a fixed light illumination type, it provides a steady and consistent light output. The white clear LED color offers a crisp and bright illumination. Operating at a voltage of 12 VDC, it consumes minimal power while delivering excellent performance.
Key Features
- Mounting Hole: 12 mm
- LED Color: White Clear
- Voltage: 12V DC
- Terminals: Solder Lug Faston
- Type Of Illumination: Fixed Light
Specifications
Distinctive Features:
- 6 mm, 8 mm, 10 mm and 12 mm Ø cut-out sizes
- Front panel snap-in mounting requires no additional hardware
- Standard intensity diffused LED or high brightness LEDfor daylight viewing
General Specifications:
- Max Reverse Voltage: 5V
- Viewing Angle: 30–100° (dependant on model)
- Life Expectancy: 100,000 hours
- Operating Temperature Range: –30 to +65°C
Electrical Specifications:
- 02 (No Resistor) 1.8 to 2.5VDC 20mA max*
- 6VDC 5.4 to 6.6VDC 20mA
- 12VDC 10.8 to 13.2VDC 20mA
- 24VDC 21.6 to 26.4VDC 20mA
- 28VDC 25.2 to 30.8VDC 20mA
- 110VAC (not available on QS6) 99 to 110VAC 6mA
- 220VAC (not available on QS6) 207 to 253VAC 3mA
