QS121XXG24

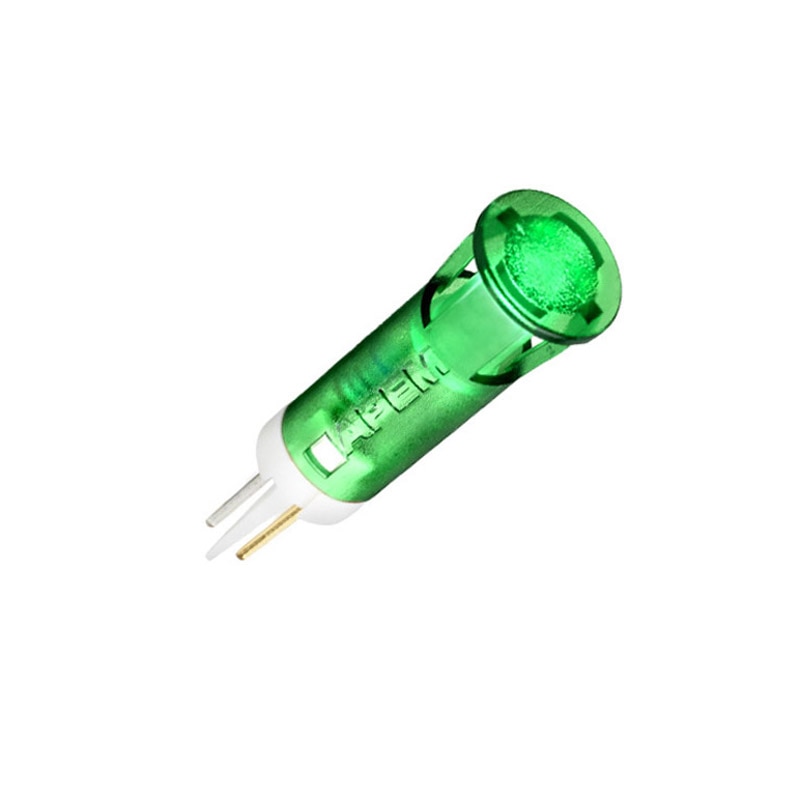

The QS121XXG24 LED Indicator is a versatile and reliable component that can be used in a variety of applications. With a 12 mm mounting hole, it can easily be installed in any compatible panel or device. The solder lug faston terminals ensure a secure and efficient connection. The LED indicator emits a fixed green light, providing clear and visible illumination. Operating at a voltage of 24 VDC, it is designed to meet the power requirements of your system. Trust the QS121XXG24 LED Indicator to deliver exceptional performance and reliability in your projects.
Key Features
- Mounting Hole: 12 mm
- LED Color: Green
- Voltage: 24VDC
- Terminals: Solder Lug Faston
- Type Of Illumination: Fixed Light
Specifications
Distinctive Features:
- 6 mm, 8 mm, 10 mm and 12 mm Ø cut-out sizes
- Front panel snap-in mounting requires no additional hardware
- Standard intensity diffused LED or high brightness LEDfor daylight viewing
General Specifications:
- Max Reverse Voltage: 5V
- Viewing Angle: 30–100° (dependant on model)
- Life Expectancy: 100,000 hours
- Operating Temperature Range: –30 to +65°C
Electrical Specifications:
- 02 (No Resistor) 1.8 to 2.5VDC 20mA max*
- 6VDC 5.4 to 6.6VDC 20mA
- 12VDC 10.8 to 13.2VDC 20mA
- 24VDC 21.6 to 26.4VDC 20mA
- 28VDC 25.2 to 30.8VDC 20mA
- 110VAC (not available on QS6) 99 to 110VAC 6mA
- 220VAC (not available on QS6) 207 to 253VAC 3mA
