QRM85BXXY24E

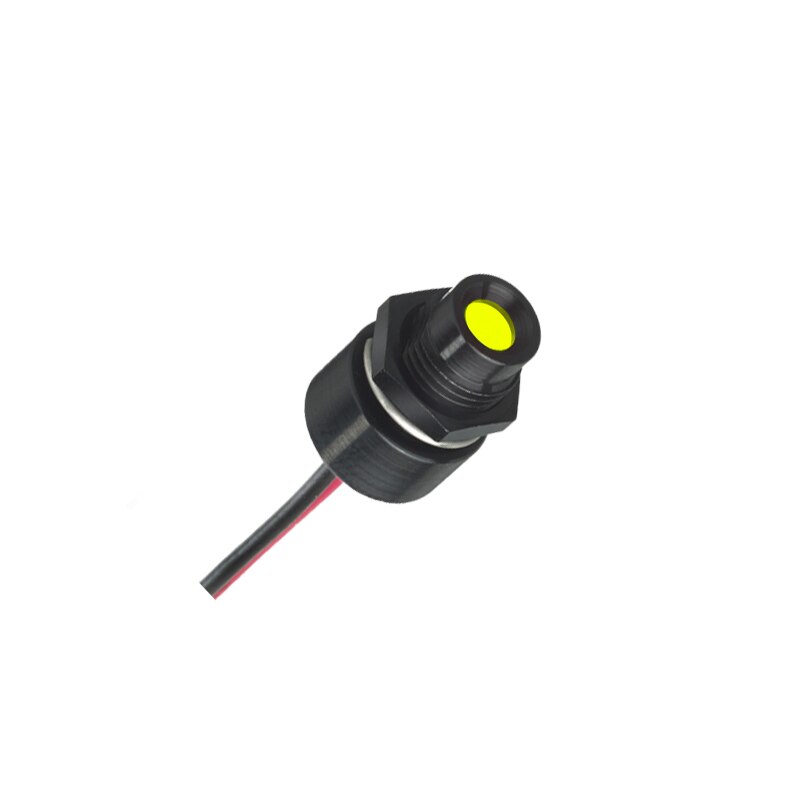

The QRM85BXXY24E LED Indicator is a versatile and reliable product that will meet your needs. With an 8mm mounting hole, it can easily be installed in various applications. The terminals are designed for easy wiring, ensuring a hassle-free installation process. The black bezel finish adds a sleek and professional look to your equipment. The fixed light illumination provides a clear and consistent signal. The yellow LED color is highly visible and attention-grabbing. Operating at 24 VDC, this LED indicator is energy efficient and cost-effective. With an IP67 standard sealing, it is protected against dust and water ingress, making it suitable for both indoor and outdoor use.
Key Features
- Mounting Hole: 8 mm
- LED Color: Yellow
- Voltage: 24VDC
- Sealing: IP67
- Terminals: Wires
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
Specifications
Distinctive Features:
- 5 mm flush diffused LED, standard, hyper bright or water clear
- Bi-color and tri-color LED options200 mm wire or pin terminations
General Specifications:
- Max Reverse Voltage: 5V
- Viewing Angle: 60°
- Life Expectancy: 100,000 hours
- Max panel thickness: 3.5mm
- Torque: 60cNm
Environmental Specifications:
- Operating Temperature Range: –40°C to +85°C
- Storage Temperature Range: –55°C to +100°C
- IP67 sealed (EN60529)
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.8VDC 20mA max
- 6VDC 5.4 to 6.6VDC 20mA
- 12VDC 10.8 to 13.2VDC 20mA
- 24VDC 21.6 to 26.4VDC 20mA
- 28VDC 25.2 to 30.8VDC 20mA
