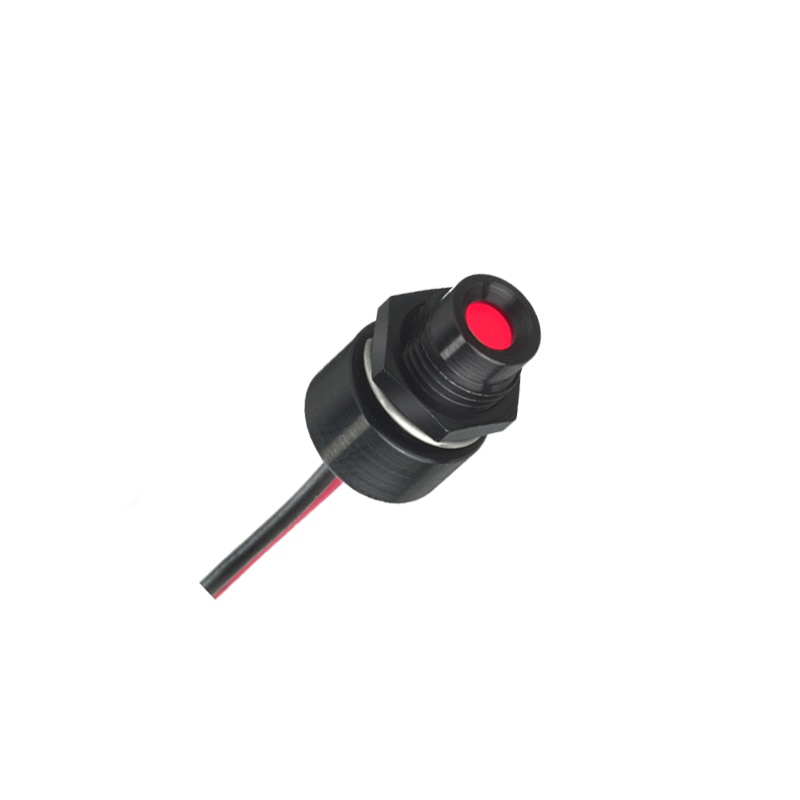

QRM85ANXXHR02E
Key Features
- Series: QRM
- Voltage: no resistor
- Terminals: Wires
- Bezel Finish: Black
- Sealing: IP67 (Standard)
- Type Of Illumination: Fixed Light
- Mounting Hole: Ø8 mm
Specifications
Distinctive Features:
- 5 mm flush diffused LED, standard, hyper bright or water clear
- Bi-color and tri-color LED options
- 200 mm wire or pin terminations
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 60°
- Life Expectancy: 100,000 hours
- Max Panel Thickness: 3.5 mm
- Torque: 60 cNm
Environmental Specifications:
- IP67 sealing option (EN60529)
- Operating Temperature Range: -40 °C to +85 °C ( –40 °F to +185 °F)
- Storage Temperature Range: -55 °C to +100 °C (-67 °F to +212 °F)
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.8VDC 20mA max
- 6VDC 5.4 to 6.6VDC 20mA
- 12VDC 10.8 to 13.2VDC 20mA
- 24VDC 21.6 to 26.4VDC 20mA
- 28VDC 25.2 to 30.8VDC 20mA
Materials:
- Body: Black plated brass or anodized finish
- Nut: Black plated brass
- Panel seal: Nitrile O-ring
- Lock washer: Spring steel
- Terminal seal: Epoxy
- Wires: 24AWG to UL1093
