Q8P7BXXR28E

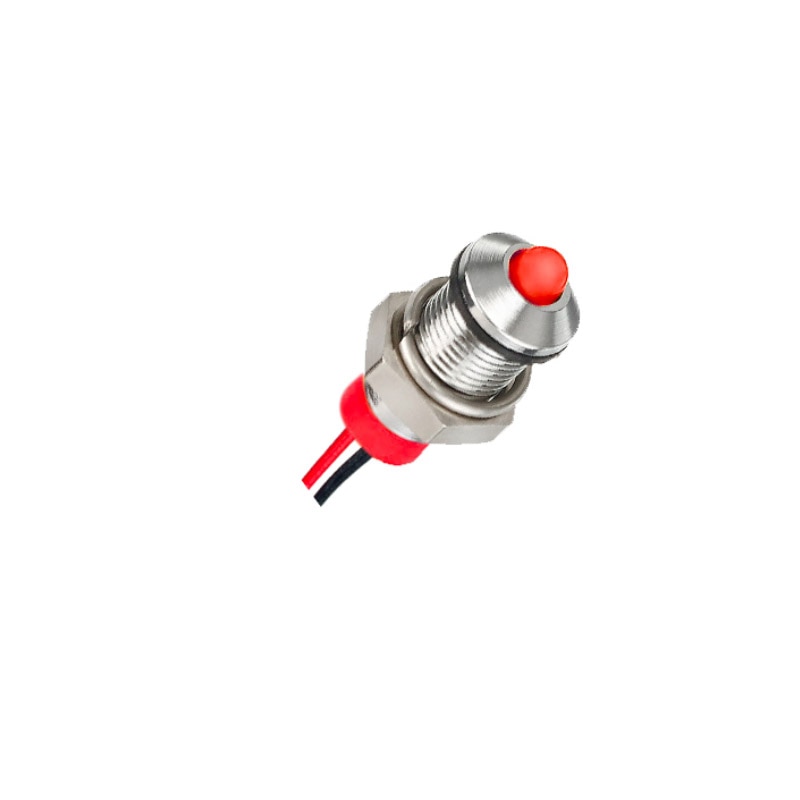

Introducing the Q8P7BXXR28E LED Indicator, a versatile and reliable solution for all your signaling needs. With an 8 mm Mounting Hole, this indicator can be easily installed in a variety of applications. Its Prominent Bezel Style adds a touch of sophistication to any device. The Short body Wires Terminals make wiring a breeze, ensuring a hassle-free installation process. The sleek Black Bezel Finish adds a sleek and modern look to your equipment. With Fixed Light Type Of Illumination, you can trust that your indicator will provide a clear and consistent signal. The vibrant Red LED Color ensures visibility even in bright environments. Operating at 28 VDC, this indicator is both efficient and durable. With an IP67 Sealing, it is resistant to dust and water, making it suitable for both indoor and outdoor use. Upgrade your signaling system with the Q8P7BXXR28E LED Indicator today!
Key Features
- Mounting Hole: 8 mm
- LED Color: Red
- Voltage: 28V DC
- Sealing: IP67
- Terminals: Short Body Wires
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
- Bezel Style: Prominent
Specifications
Distinctive Features:
- 5mm colored diffused epoxy lens or 5 mm water clearsuper bright LEDs
- Prominent, recessed and flush bezel styles(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations (2.0 x 0.5) solder lug/faston terminals ontri-color versions
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 20 to 25 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
