Q8F3BXXHY110E

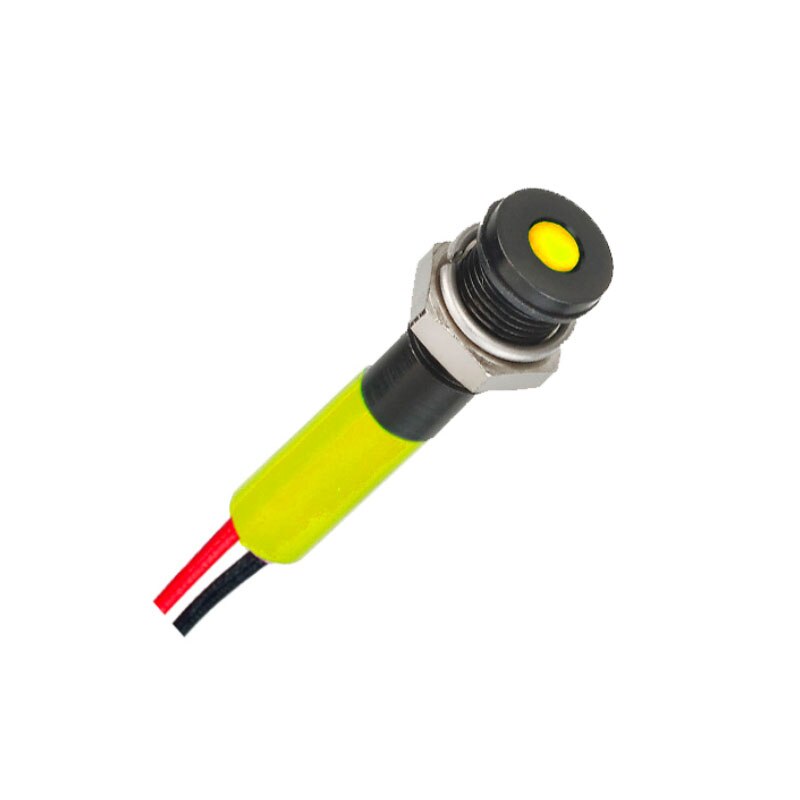

The Q8F3BXXHY110E LED Indicator is a versatile and reliable option for various applications. With an 8mm mounting hole, it can easily fit into any compatible panel. The flush bezel style gives it a sleek and modern look, while the black bezel finish adds a touch of sophistication. The indicator is designed with wire terminals for easy installation. The fixed light illumination ensures a steady and consistent display. The hyper bright yellow LED color provides excellent visibility even in bright lighting conditions. With a voltage rating of 110 VAC, it is suitable for use in different power systems. Additionally, the IP67 sealing ensures protection against dust and water, making it suitable for both indoor and outdoor environments.
Key Features
- Mounting Hole: 8 mm
- LED Color: Hyper Bright Yellow
- Voltage: 110V AC
- Sealing: IP67
- Terminals: Wires
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
- Bezel Style: Flush
Specifications
Distinctive Features:
- 5mm colored diffused epoxy lens or 5 mm water clearsuper bright LEDs
- Prominent, recessed and flush bezel styles
- (2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations (2.0 x 0.5) solder lug/faston terminals on
- tri-color versions
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 20 to 25 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
