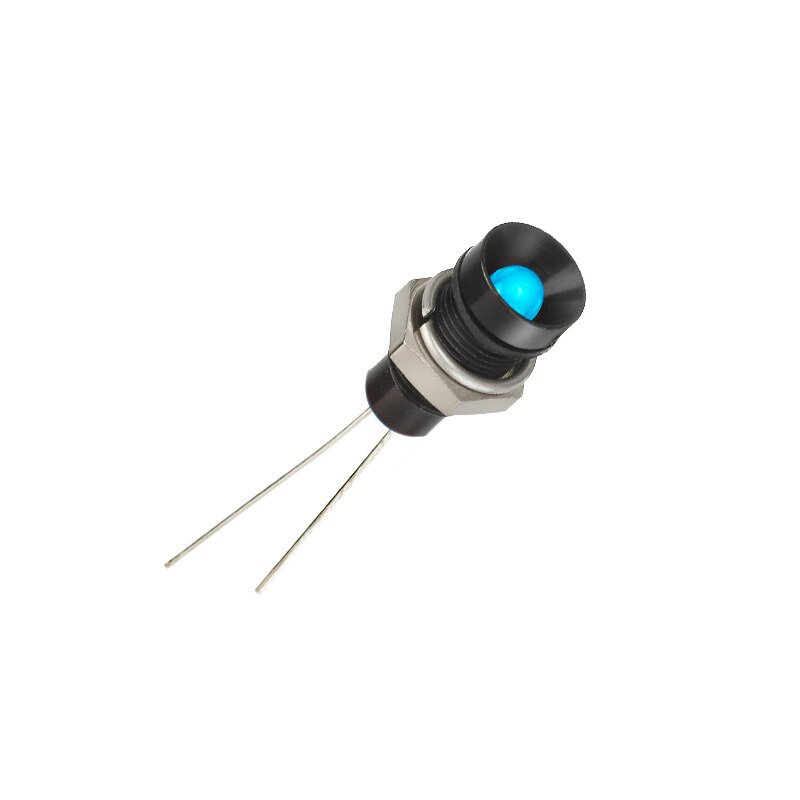

Q6R6BXXB02E
The Q6R6BXXB02E LED Indicator is a versatile and reliable product that will meet all your illumination needs. With a mounting hole diameter of 6mm, it can be easily installed in any desired location. The recessed bezel style gives it a sleek and modern look, perfect for any application. The short body pins make it easy to connect and secure the indicator. The black bezel finish adds a touch of elegance and sophistication. The fixed blue light illumination provides a clear and bright display. With no resistor required for voltage, installation is hassle-free. And with an IP67 sealing rating, this indicator is resistant to dust and water, ensuring durability and longevity.
Key Features
- Mounting Hole: 6 mm
- LED Color: Blue
- Voltage: No Resistor
- Sealing: IP67
- Terminals: Short Body Pins
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
- Bezel Style: Recessed
Specifications
Distinctive Features:
- 3 mm colored diffused epoxy lens or 3 mm water clearsuper bright LEDs
- Prominent, recessed and flush bezel styles
- (2.0 x 0.5) solder lug terminals, pins or (200 mm long) wireterminations, other lengths available on request
General Specifications:
- Max Reverse Voltage: 5V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40°C to +85°C *
- Torque: 4cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN60529
Electrical Specifications:
- (No Resistor) 1.8 to 3.8VDC 20mA max
- 6VDC 5.4 to 6.6VDC 20mA
- 12VDC 10.8 to 13.2VDC 20mA
- 24VDC 21.6 to 26.4VDC 20mA
- 28VDC 25.2 to 30.8VDC 20mA
