Q6F3BXXG24

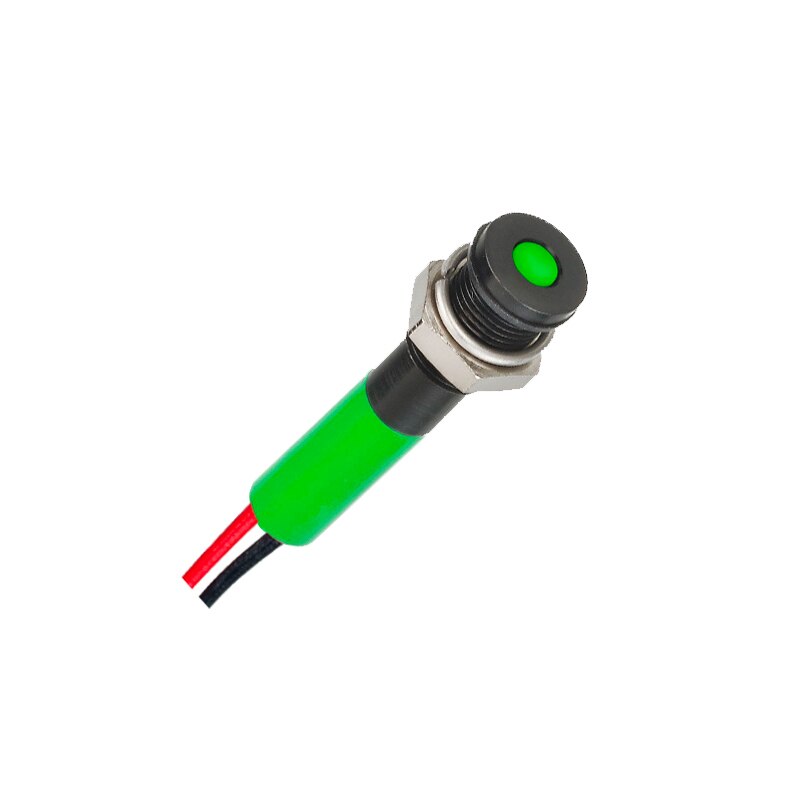

The Q6F3BXXG24 LED Indicator is a versatile and reliable component that is perfect for a wide range of applications. With a mounting hole diameter of 6 mm, it can easily fit into any compatible panel or device. Its flush bezel style seamlessly integrates into the design, providing a sleek and professional look. The indicator features wire terminals, making installation simple and hassle-free. The black bezel finish adds a touch of elegance to any equipment. With fixed green illumination, it provides a clear visual indication. Operating at a voltage of 24 VDC, it is efficient and energy-saving. While it is unsealed, it is still durable and able to withstand various environmental conditions. Whether you need to indicate status, signal warnings, or display information, the Q6F3BXXG24 LED Indicator is the ideal choice.
Key Features
- Mounting Hole: 6 mm
- LED Color: Green
- Voltage: 24VDC
- Sealing: Unsealed
- Terminals: Wires
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
- Bezel Style: Flush
Specifications
Distinctive Features:
- 3 mm colored diffused epoxy lens or 3 mm water clearsuper bright LEDs
- Prominent, recessed and flush bezel styles
- (2.0 x 0.5) solder lug terminals, pins or (200 mm long) wireterminations, other lengths available on request
General Specifications:
- Max Reverse Voltage: 5V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40°C to +85°C *
- Torque: 4cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN60529
Electrical Specifications:
- (No Resistor) 1.8 to 3.8VDC 20mA max
- 6VDC 5.4 to 6.6VDC 20mA
- 12VDC 10.8 to 13.2VDC 20mA
- 24VDC 21.6 to 26.4VDC 20mA
- 28VDC 25.2 to 30.8VDC 20mA
