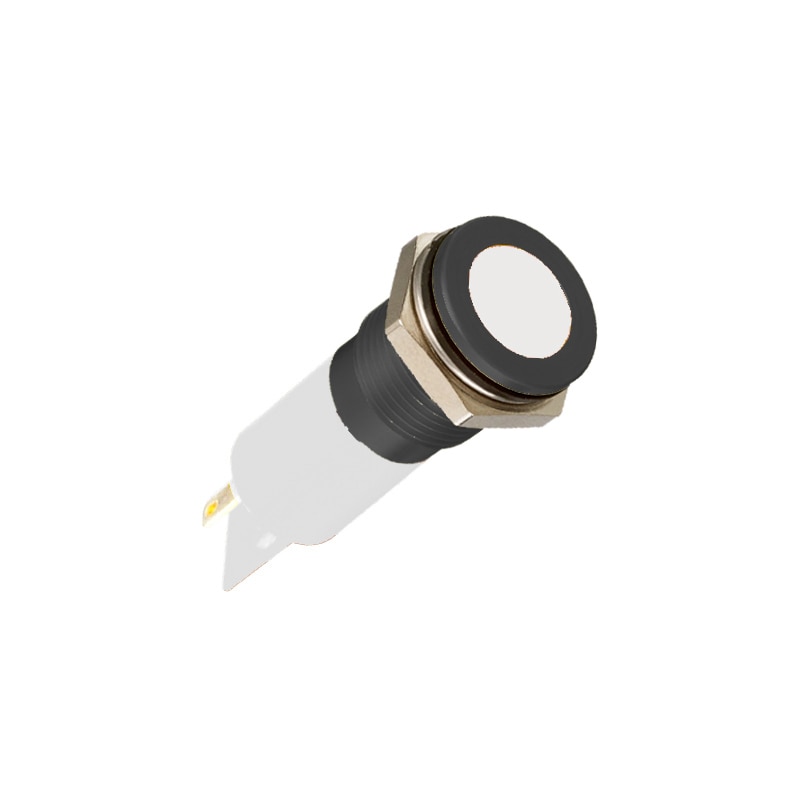

Q14F1BXXW02E
Panel mount LED indicators with 10 mm coloured diffused epoxy lens or 10 mm water clear super bright LEDs with fixed light, flashing and RGB options.
Key Features
- Voltage: no resistor
- Led Color: White
- Mounting Hole: Ø14mm
- Series: Q
- Bezel Style: Flush
- Type Of Illumination: Fixed Light
- Bezel Finish: Black
- Sealing: IP67
- Terminals: Solder Lug/ Fastons (2.8 x 0.8)
Specifications
Distinctive Features:
- 10 mm colored diffused epoxy lens or 10 mm water clearsuper bright LEDs
- Prominent and flush bezel styles(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations
- Custom engraving available
- Available in RGB
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Torque: 75 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
- Temperature Range: –40 to +85 °C * * Dependant on Model
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
Materials:
- Plated brass bezel finished in bright chrome, black or satingrey and molded polycarbonate rear body
