Q12-7P5BXXHY12E

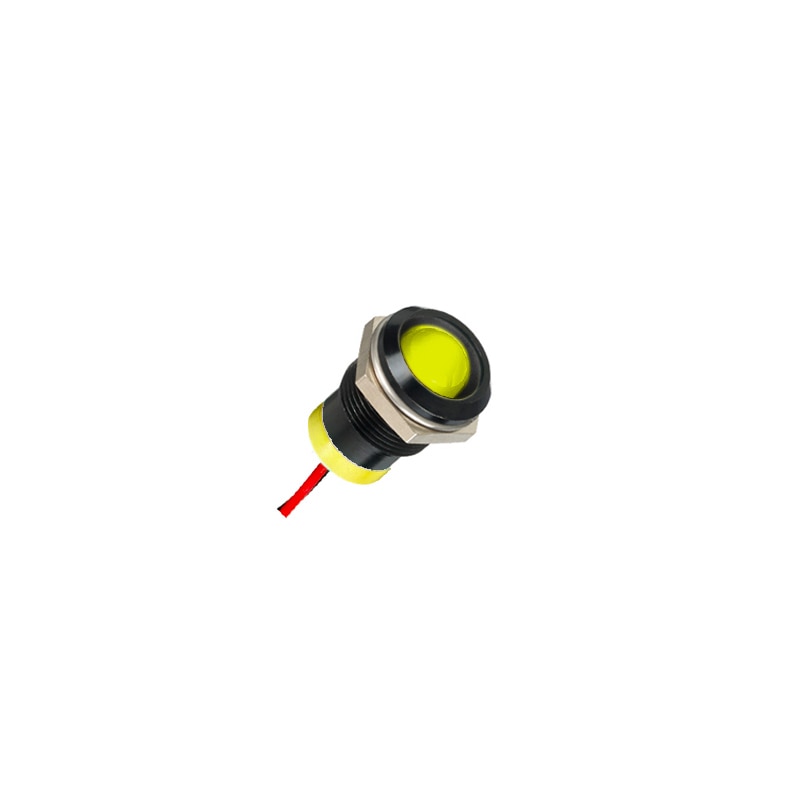

The Q12-7P5BXXHY12E LED Indicator is a versatile and high-quality product that will meet all your illumination needs. With a mounting hole diameter of 127 mm, it can be easily installed in various applications. The prominent bezel style adds a touch of elegance to its appearance. The rear epoxy wires provide secure and reliable connections. The black bezel finish gives it a sleek and modern look. With fixed light illumination, it ensures a steady and consistent glow. The hyper bright yellow LED color adds vibrancy and visibility to your display. Operating at a voltage of 12 VDC, it is energy efficient and reliable. With an IP67 sealing, it is protected against dust and water, making it suitable for indoor and outdoor use.
Key Features
- Series: Q
- Sealing: IP67
- Voltage: 12 VDC
- Bezel Style: Prominent
- Bezel Finish: Black
- Mounting Hole: 127
- Type Of Illumination: Fixed Light
- Led Color: Hyper Bright Yellow
- Terminals: Rear epoxy Wires
Specifications
Distinctive Features:
- 8 mm colored diffused epoxy lens or 8 mm water clearsuper bright LEDs
- 2VDC - 220VAC
- (2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 75 cNm* Dependant on Mode
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
