Q10F5SXXSB02E

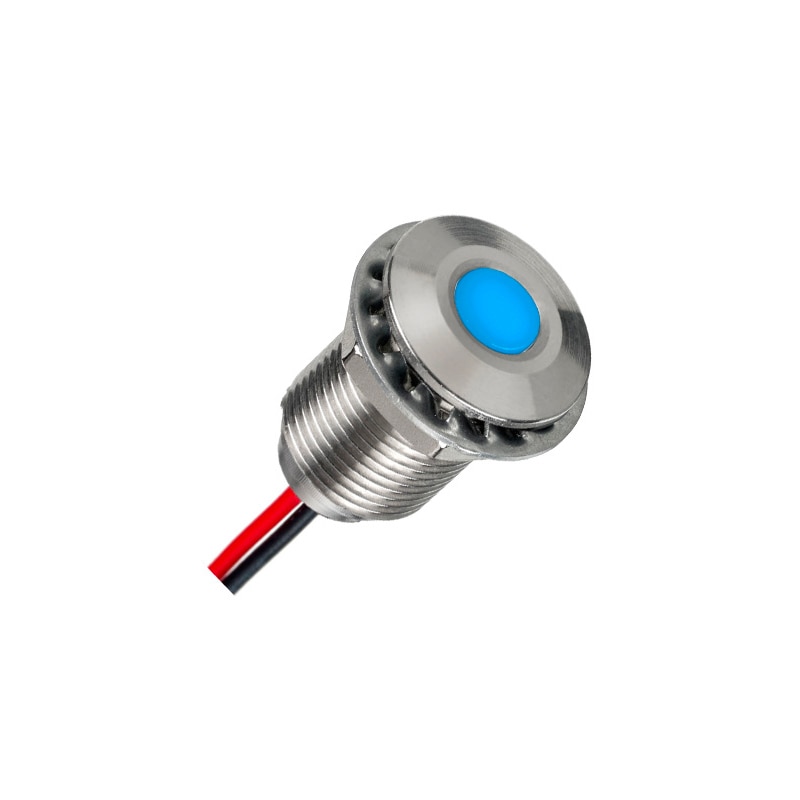

The Q10F5SXXSB02E LED Indicator is a versatile and reliable component for various applications. With a 10mm Mounting Hole, it can be easily installed in different devices. Its Flush Bezel Style ensures a sleek and seamless integration into any design. The Rear epoxy Wires Terminals provide a secure and stable connection. The Stainless Steel Bezel Finish adds a touch of elegance to the indicator. Featuring Fixed Light Type Of Illumination, it delivers a consistent and bright illumination. The Super Bright Blue LED Color adds a vibrant and eye-catching element. With a no resistor 06 Voltage, it can be easily powered. With an IP67 Sealing, it is protected against dust and water, ensuring durability and reliability.
Key Features
- Mounting Hole: 10 mm
- LED Color: Super Bright Blue
- Voltage: No Resistor
- Sealing: IP67
- Terminals: Rear Epoxy Wires
- Bezel Finish: Stainless Steel
- Type Of Illumination: Fixed Light
- Bezel Style: Flush
Specifications
Distinctive Features:
- 5 mm flush diffused LED, standard, hyper bright or water clear
- Flush chamfered bezel style(200 mm long) wire terminations
- Available in RGB
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 60° *
- Life Expectancy: 100,000 hours
- Torque: 20 to 25 cNm* Dependant on Model
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
- Temperature Range: –40 to +85 °C (operation & storage)
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
