Q14F3BYYRG12EDI103

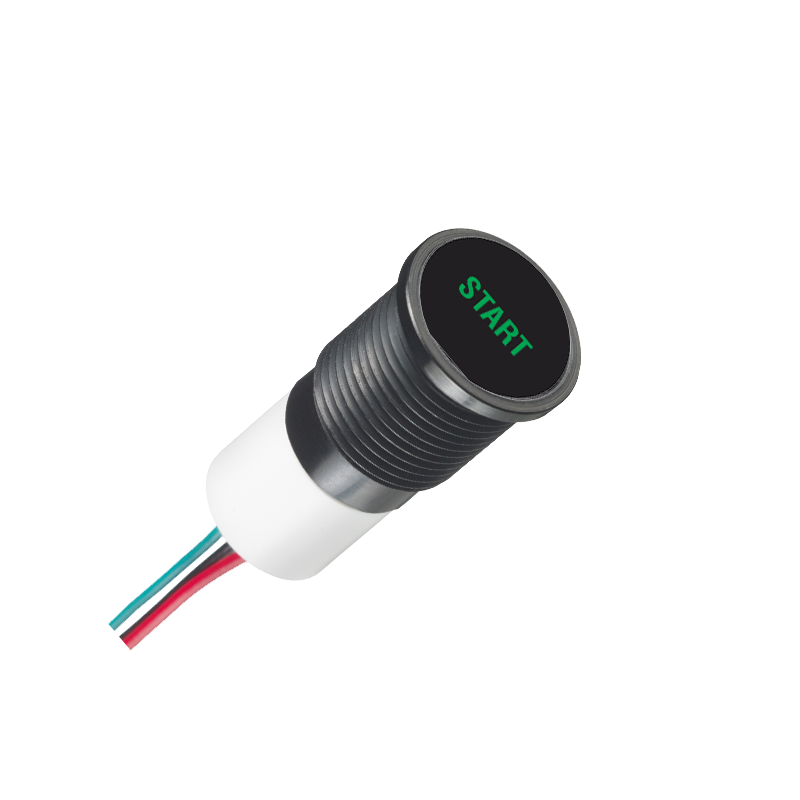

The Q14F3BYYRG12EDI103 LED Indicator is designed with a 14mm mounting hole, allowing for easy installation. Its flush bezel style provides a sleek and seamless appearance. The indicator features wire terminals for convenient connectivity. With a black bezel finish, it adds a touch of sophistication to any application. The bi-color illumination allows for red and green LED colors, providing clear visual indication. Operating at a voltage of 12 VDC, it ensures reliable performance. Additionally, it is sealed with an IP67 rating, making it resistant to dust and water.
Key Features
- Marking: Start Stop
- Mounting Hole: 14mm
- LED Color: Red/Green
- Voltage: 12V DC
- Sealing: IP67
- Terminals: Wires
- Bezel Finish: Black
- Type Of Illumination: Bicolor
- Bezel Style: Flush
Specifications
General Specifications:
- Max Reverse Voltage: 5 V
- Life Expectancy: 100,000 hours
- Torque: 75 cNm
- Maximum panel thickness 11 mm
- IP67 Sealing (EN60529)
- Insulation resistance : 4,000 MΩ at 500 VDC
Environmental Specifications:
- IP67 sealing (EN60529)
- Operating & storage temperature range: -30°C to +65°C (-22°F to +149°F)
- Relative humidity: 504h, 85%, 65°C, BS EN 60068-2-78:2013 Test Cab
Electrical Specifications:
- Voltage: 12 VDC
- Operating voltage (Min to Max): 10.3 to 14.1 VDC
- Operating current (typical all types): 20 mA
