TS1P1S00A

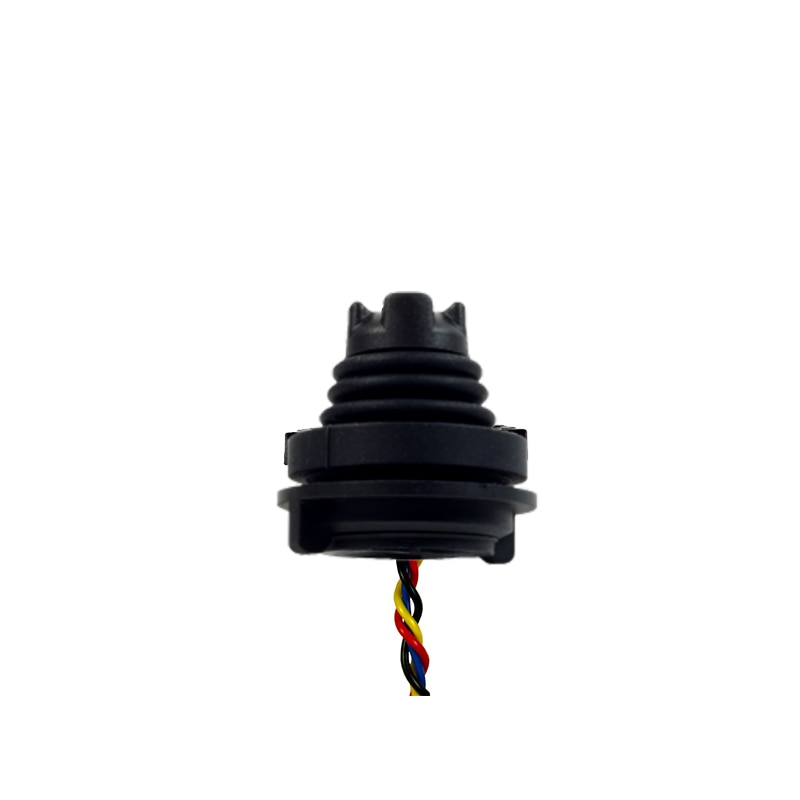

Introducing the TS1P1S00A Joystick, a versatile and high-quality controller for a variety of applications. With its ergonomic Castle handle, it provides a comfortable grip for extended use. The threaded housing allows for easy mounting on any compatible surface, ensuring stability and reliability during operation. The Square limiter feature provides precise control and prevents overextension. The output range of 0 V to 5 V allows for flexible integration with other devices. The LED control feature enables easy customization and adjustment of the LED lights. Choose from a wide range of LED colors to suit your preferences and create a visually appealing setup.
Specifications
Distinctive Features:
- One or two axis
- Analog, PWM or USB outputs
- IP67 Above panel sealing mounting
- Rear or drop-in mounting
- Pushbutton option
General Specifications:
- 1 or 2 axis
- USB outputs available
- Non-contact Hall effect technology
- Pushbutton & LED options
- IP67 Above panel sealing
- Redundant outputs available
- Rear or drop-in mounting available
Environmental Specifications:
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Sealing: IP67
- EMC Immunity Level: EN61000-4-3
- EMC Emissions Level: EN61000-6-3:2001
- ESD: EN61000-4-2
Electrical Specifications:
- Technology: Hall effect sensors, single or dual
- Supply Voltage Range: 5.00V±0.01V
- Supply current: 11mA max
- Ratiometric output options: see options
- Reverse Polarity Max: -10V
- Transient overvoltage Max: 16V
- Start-up time: 15ms max
- Output Impedance: 2Ω
- Return to Center Voltage Tolerance: ±200mV initial
