NVH1D1C0VP6S

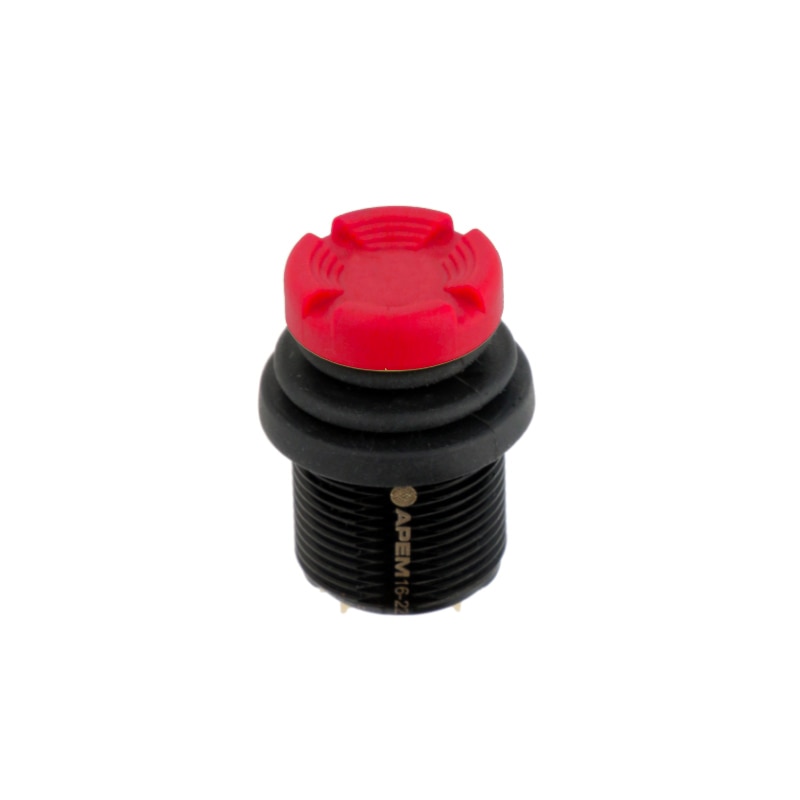

The NV series is 4 or 5-direction switch-based joystick (4 directions + pushbutton).

Key Features
- Series: NV
- Output: Connector
- Limiter: 1 axis, vertical
- Actuator Styles: Castle
- Pushbutton: No
- Contact: 50 mA
- Panel Mount: Drop-in
- Actuator Colors: Red
- Force: Standard
Specifications
Distinctive Features:
- Tactile feedback in all directions & optional pushbutton
- Compact and low profile behind panel
- Shock, vibration & salt spray resistant1 million lifecycles
- Sealed to IP69K
General Specifications:
- Panel thickness : 1 to 10 mm (.039 to .393)
Environmental Specifications:
- Front panel sealing: IP69K (DIN 40050-9), IP67 (IEC 60529)
- Shock resistance - IEC 60068-2-27: 3 sinusoidal impulse 300m/s² 18ms on 3 axis
- Vibrations (random, 3 axis) per IEC 60068-2-64: 10-350Hz
- Vibrations (sinus) IEC 60068-2-6: 10-200Hz / 20m/s² dwell period 30 min.
- Salt Spray: 96 h IEC 60068-2-11/KA
- Damp heat per IEC 68-2-78: 40°C 93% HR 10 days
- Cold and dry heat, temperature shock IEC 68-2-14/Na: -40°C to +85°C - 10 cycles
- Operating temperature: -40°C / +65°C
Electrical Specifications:
- Electrical function : 4 or 5 momentary NO
- Max. current/voltage rating with resistive load : 50mA 12VDC
- Electrical life at full load : 1.000.000 cycles per direction 1.000.000 cycles for pushbutton
- Output : MOLEX 6 pin connector (Ref: 53398-0671) Mating connector Molex 51021-0600
Materials:
- Sealing Gasket : Elastomeric
- Case : Brass, black chrome plated
- Actuator : ABS
- Lever : Steel
- Nut : Brass, black chrome plated
- Output wires (flying lead terminals) : AWG24, section0.23 mm², UL 1213 (military grade)
Mechanical Specifications:
- Life : 1 million cycles per direction
- Angular travel : 12°
- Pushbutton travel : 1,5 mm
- Operating force : Directions : 4 N ± 1 N Pushbutton: 11 N ± 2 N
- Torque : 2 Nm min. applied to nut
- Mechanical strength : the switch can withstand a force of 100 N applied in any directions
