HS2T24GA

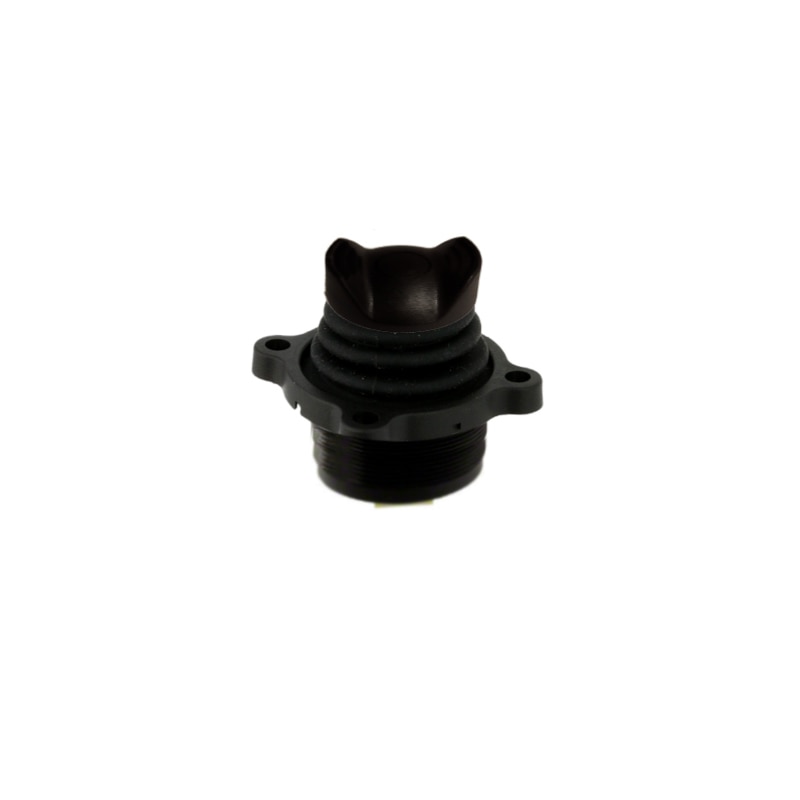

The Winged Hat HS2T24GA Joystick is a versatile and high-quality control device. Its ergonomic design provides comfort and ease of use, making it ideal for various applications. The metal threaded housing ensures durability and stability during operation. With a 100 mm 0039 in pitch Molex connector and 10 mating harness, the termination process is seamless and reliable. The 4-way limiter allows for precise and controlled movement. The gold-plated contacts ensure efficient and reliable electrical conductivity. Upgrade your control system with the Winged Hat HS2T24GA Joystick.
Key Features
- Handle: Winged Hat
- Mounting Style: Metal Threaded Housing
Specifications
Distinctive Features:
- 2, 4 & 5-way (5-way with pushbutton option) operation
- Positive tactile feedback
- MOM-OFF-MOM
- Connectorized housing
- Several handle options available
General Specifications:
- 5-way with center pushbutton option
- Positive tactile feedback
- Mom-off-momentary action
- Threaded bush mount option
- Sealed to IP67
- Connectorized housing
Environmental Specifications:
- Sealing: IP67 (Drop-in mounting does not prevent panel ingress)
- Operating temperature: -25 ºC to +80 ºC (-13 °F to +176 °F)
Electrical Specifications:
- Contact rating lifecycles : - Gold plated (G) – 10 mA @ 30 VDC – 200,000 operations- Silver plated (S) – 100 mA @ 30 VDC – 100,000 operations
- Mechanical life – 300,000 operations
- Insulation resistance – Min 100 MΩ (250 VDC by insulation resistance meter)
- Voltage withstand – 500 VAC for 1 minute
- Contact resistance – Max 200 mΩ (by YHP4328A)
- Electrical function – MOM-OFF-MOM
