XDGTY2MNNCYYPAN

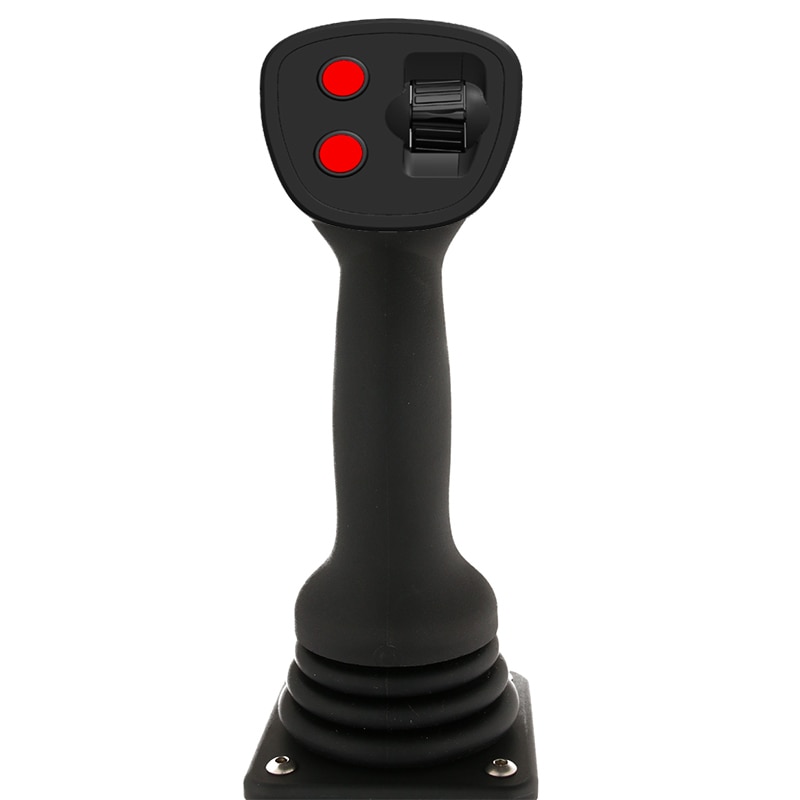

The XDGTY2MNNCYYPAN Joystick, also known as the GT, is a versatile and reliable control device. Its ergonomic design features a comfortable Handle (Poignée/Handgriff/控制杆) for easy operation. The Spring centering (Retour au centre/Rückstellung/定心) mechanism ensures precise control and smooth movements. With an Operating Force (Force de fonctionnement/Betriebskraft/操作力) of 124Nm, this joystick offers optimal responsiveness. The output (Sortie/Ausgang/输出) of the XDGTY2MNNCYYPAN is compatible with the SAE CAN bus J1939 71 protocol, ensuring seamless integration with your existing systems. The Operator Presence Paddle (Palette de présence de l'opérateur/Fahrerpräsenzpaddel/操作员检测摇杆) feature provides an added layer of safety, allowing for immediate detection of the operator's presence. The XDGTY2MNNCYYPAN also includes an Index Trigger (Déclencheur d'index/Index-Trigger/索引触发器) for precise control and quick actions. The Faceplate (Façade/Frontplatte/面板) of the joystick is equipped with two pushbuttons and a Hall effect thumbwheel, enhancing its versatility and functionality. With its exceptional performance and user-friendly design, the XDGTY2MNNCYYPAN Joystick is the ideal choice for various applications, including industrial automation, robotics, and gaming. Get ready to experience seamless control and enhanced productivity with this top-of-the-line joystick.
Key Features
- Operator Presence Paddle: Yes
- Handle: GT
- Centering: Spring centering
- Index Trigger: Yes
- Operation: One axis, Y
- Mechanical: None ²
- Series: XD
- Operating Force: 1.24Nm
Specifications
Distinctive Features:
- SIL 2 compatible - Redundant Hall sensors
- Resists high axial load (1780 N - 400 lbf)
- Shallow mounting depth of <60 mm (2.36)
- Rated for 10 million lifecycles
- SAE CAN bus J1939-71
General Specifications:
- Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
- Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
- Above Panel Sealing: Up to IP67/IP69K (subject to handleconfiguration)
- Humidity: IEC 60068-2-38
- Thermal shock: SAE J1455 section 4.1.3.2
- Salt spray: IEC 60068-2-11
Environmental Specifications:
- Random vibration: IEC 60068-2-64
- Sinusoidal vibration: IEC 60068-2-6
- EMS Emissions:- Radiated Emissions Level: ECE/324/Add.9:2012 CISPR 25:2002- Radiated Emissions Level: CISPR 25:2008
- EMS Immunity:- ESD: ISC 10605:2008 criteria A- Radiated immunity: ISO 11452-2:2004 criteria B- Bulk current injection immunity: ISO 11452-4:201 criteria A- Pulse 1, Pulse 2a, Pulse 2b, Pulse 3a, Pulse 3b, Pulse 4, Pulse 5a:ISO 7637-2:2011 criteria A
Electrical Specifications:
- Technology: Redundant Hall effect sensors
- Supply voltage range: 6 - 35 VDC
- Transient overvoltage max: 40 V
- Reverse polarity Max: -1000 VDC
- Output signal: SAE CAN bus J1939-71
- Connections: Deutsch DTM04-6p
- Six position connector: Deutsch DTM04-6P
- Wire: 22 AWG, PTFE insulation with expandable sleeve
- Length: 6.00” +/- 0.5” (bottom of joystick to connector)
