HJSGBSAAJEA

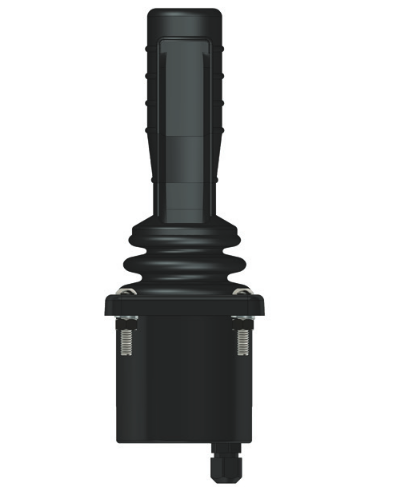

The HJSGBSAAJEA Joystick, also known as the Handle, is a versatile and reliable controller designed for various applications. It features an operator presence switch, ensuring safety and preventing unintended operation. Additionally, the joystick comes with a protective silicone boot, providing extra durability and protection against wear and tear. With its two-axis configuration, the Axis offers precise and smooth control, allowing for accurate maneuvering. The Square Limiter restricts movement within a defined range, enhancing control and preventing overextension. The Output of the joystick is adjustable between 0V and 5V, allowing for compatibility with different systems. Furthermore, the joystick's Sealing capability is rated up to IP63, making it resistant to dust and water ingress. With its exceptional features and quality construction, the HJSGBSAAJEA Joystick is the perfect choice for any application requiring precise and reliable control.
Specifications
Distinctive Features:
- Rugged multi-axis control
- CAN bus J1939-71 & CANopen outputs
- USB protocol options
- Several handle options5 million lifecycles
General Specifications:
- Rugged, hand operation
- Hall effect sensing
- 5 million life cycles
- Redundant output available
- CAN bus J1939-71, CAN open and USB outputs options
- Several handle options
Environmental Specifications:
- Operating Temperature: -40ºC to 85ºC (-40ºF to 185ºF)
- Storage Temperature: -40ºC to 85ºC (-40ºF to 185ºF)
- Above panel sealing: Up to IP63* (subject to final specifications)
- EMC Immunity Level (V/M): IEC 61000-4-8:2009
- EMC Emissions Level: IEC 61000-4-3:2006
- ESD: IEC 61000-4-2:2008*Most handles
Electrical Specifications:
- Sensor: Hall effect, single or dual
- Supply Voltage Range: 5.00VDC ±0.01VDC
- Supply Current: 15mA, +10mA per axis
- Ratiometric output voltage: See options
- Reverse Polarity Max: -10VDC
- Transient overvoltage max: 16VDC
- Minimum load: 1KΩ
- Return to Center Voltage: ±200mV (no load)
