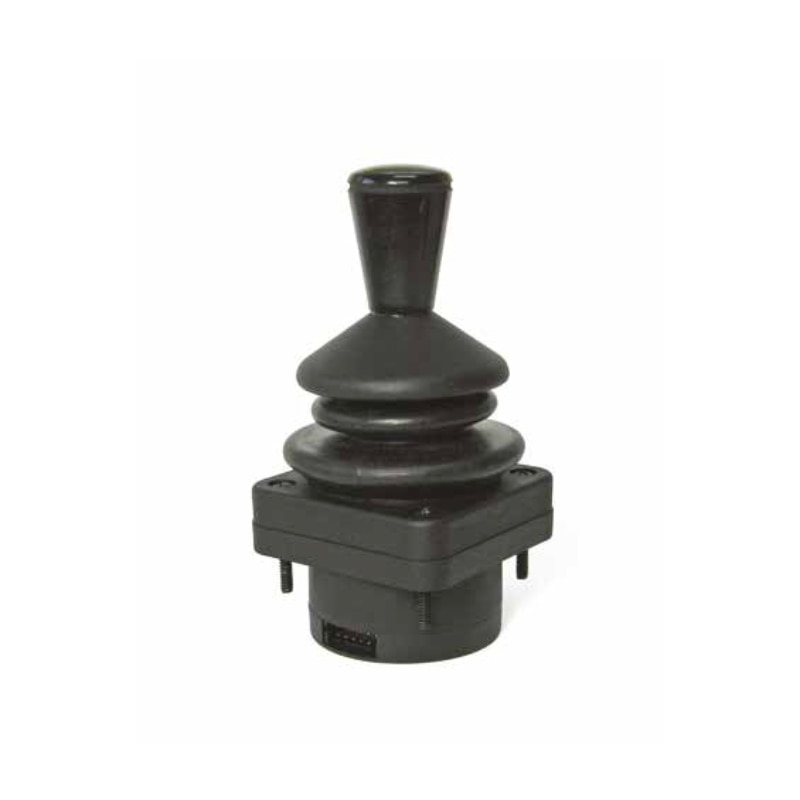

HF11P10
The HF Series joystick is a contactless, multi-axis controller providing long life finger positioning control.  A compact, low-profile joystick utilizing non-contact Hall effect technology, the HF Series joystick is designed for low operating force, clean environment applications requiring enduring accuracy and precision.
Main features
- 1, 2 & 3 axis configurations
- CAN bus J1939 and CANopen options
- USB 2.0 HID interface option
- Dual sensors for redundancy
- Voltage regulator, 24V supply option
- Connectorized housing

Key Features
- Limiter Plate: Plus
- Output Options: 0V-5V
- Mounting: Drop-in
- Series: HF
- Handle: Tapered (2 axis)
Specifications
Distinctive Features:
- One, two or three axis
- Analog outputs
- CAN bus J1939 and CANopen options
- USB 2.0 HID interface options
- Connectorized housing
General Specifications:
- Break Out Force: 1.3N (0.3lbf)
- Operating Force: 2.8N (0.63lbf)
- Maximum Applied Force: 200N (45.00lbf)
- Mechanical Angle of Movement: 36º (18º from center)
- Expected Life: 5 million
- Package Size: 5.75” x 4.50” x 3.25”
- Lever Action: Single spring, omnidirectional
Environmental Specifications:
- Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
- Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
- Above Panel Sealing: Up to IP67 (subject to final specifications)
- EMC Immunity Level (V/M): EN61000-4-3
- EMC Emissions Level: EN61000-6-3:2001
- ESD: EN61000-4-2
- Output linearity: ±200 mV
- Dual output interlinearity (X/Y): ±400 mV
- Dual output interlinearity (Z): ±600 mV
Electrical Specifications:
- Sensor: Hall effect, single or dual
- Supply Voltage Range: 5VDC±0.01VDC
- Supply Current: 40mA typical / 50mA max (3 axis)
- Reverse Polarity Max: -10VDC
- Transient Overvoltage Max: 16VDC
- Ratiometric Output Voltage: See options
- Output Current: 8mA
- Output Load: 1K ohm min
- Output Impedance: 2Ω
Materials:
- Shaft: Stainless Steel
- Boot: Silicone
- Handles: Glass filled nylon*
- Body: Glass filled nylon
Mechanical Specifications:
- Break Out Torque: 0.09Nm (0.80lbf in)
- Operating Torque: 0.121Nm(1.07lbf in)
- Maximum Allowable Torque: 2.50Nm(22.13lbf in)
- Hand Mechanical Angle: 60º (30º from center)
- Handle Action: Spring centering, rotational
- Expected Life: 5 million
