BD150SD4BL0000

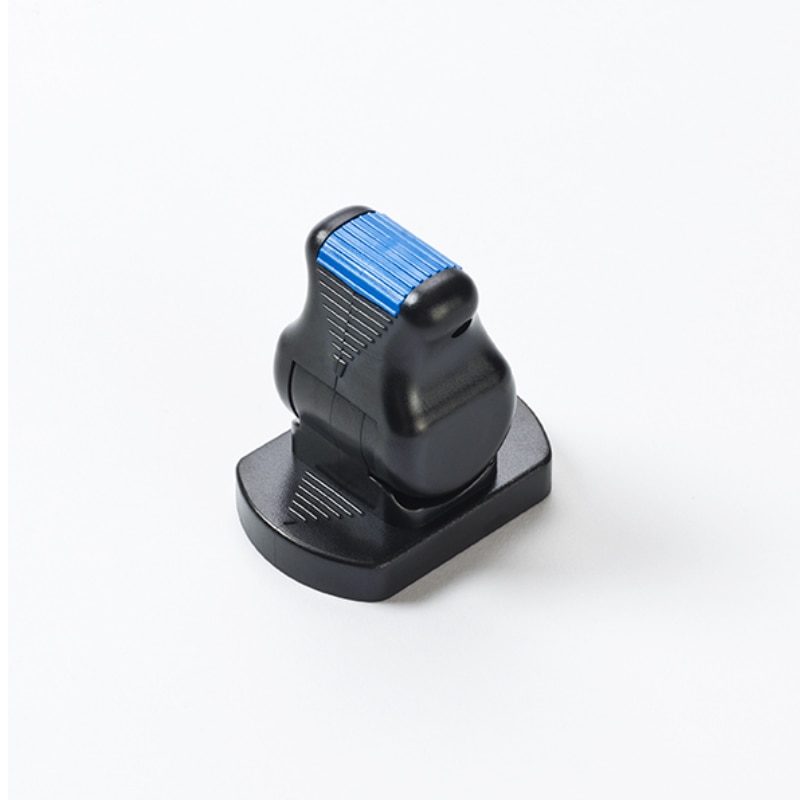

The BD150SD4BL0000 Joystick is a powerful tool that allows you to effortlessly control your electronic devices. With a Part Number of BD150SD4BL0000, this joystick falls under the category of Joysticks. It offers a smooth and responsive experience, giving you precise control over your equipment. The joystick's Gain feature ensures enhanced sensitivity, allowing you to make subtle adjustments with ease. Additionally, the insert color of this joystick is a vibrant blue, adding a touch of style to your setup. Upgrade your control experience with the BD150SD4BL0000 Joystick today.
Specifications
Distinctive Features:
- Spring or friction control options
- Two lever heights available
- Inserts available in black, red, blue, yellow & green
- Analog or PWM outputs
- Zero below panel depth
General Specifications:
- Storage: -40°C to 70°C (-40°F to 158°F)
- Operating Temperature: -25°C to 70°C (-13°F to 158°F)
- Seal Above Panel: IP67 (Gasket fitted as standard)
Environmental Specifications:
- EMC Emissions: Complies with EN 61000-6-3:2001 CISPR 22:2005 Class B 30MHz - 11GHz
- Life Cycles: 5 million cycles sprung version only. Detents rated to 2 million cycles
- ESD: Complies with EN61000-4-2 (extended)±8KV (20 contacts) & +/-15KV (20 air discharges)
- EMC Immunity: 100V/m, 80MHz-2.7GHz, 1KHz 80% sine wave modulation, EN 61000-4-3 (extended)
- Vibration: 100Hz - 200Hz @ 0.13g²/Hz, total 3.6gRMS(1 Hour in each of the three mutually perpendicular axis
Electrical Specifications:
- Gain (Output Voltage Span): ±10% x V to ±50% x V
- Output at Center: V/2 ± (5% x Gain)
- Power Supply: 5V ±0.5V Transient free
- Switch Outputs: Open Drain, pulled high within control via 1K5 to 5V, and smoothed to 0V with 100nF
- Sensor Type: Hall effect
- Current Consumption: <20mA
- Loads: Minimum 10K, preferred 100K+
