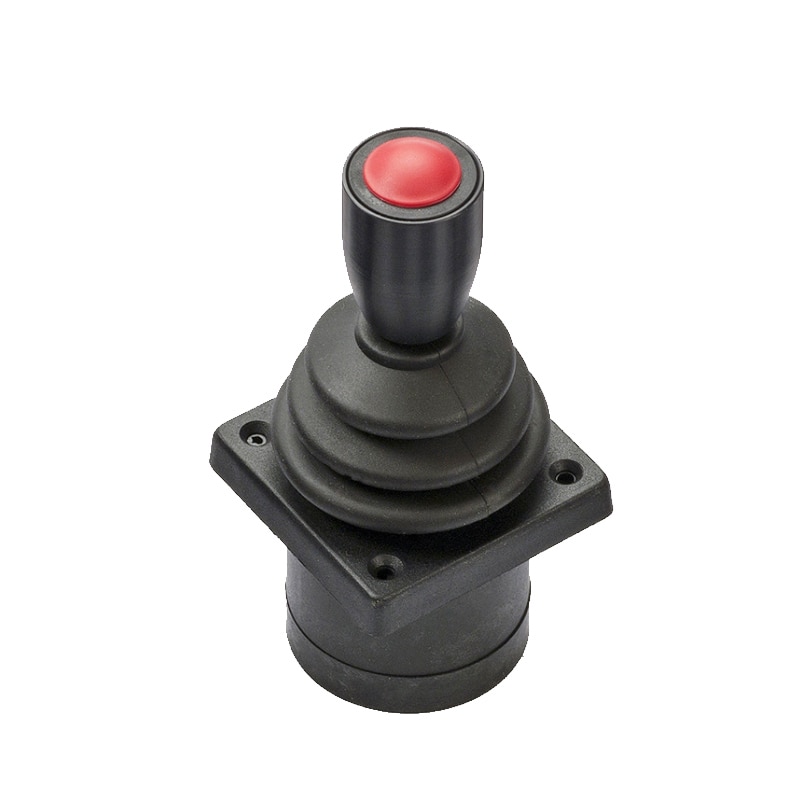

9SA40CAK0500
The 9000 Series is ideal for those applications that demand proportional control with the lowest possible profile below the panel.
Key Features
- Bezel: Not Supplied
- Handle: One pushbutton
- Limiter: Cross
- Gain: 80% (±40%)
- Sensing: Standard
- Decoding: Single Decode
- Series: 9
- Boot: Standard
Specifications
Distinctive Features:
- Propotional analog output
- One or two axis
- Infinite resolution
- Low profile design with multiple handle options
General Specifications:
- Progressive switching
- One or two axis
- Signal mixing options
- 5 - 15V operation
- Optional at center and internal fault detection
- Dual redundant outputs
- Infinite resolution Inductive sensing
Environmental Specifications:
- Above Panel Seal: IP65
- Temperature Range: -20°C to +55°C (-4°F to +131°F)
- Operating Lever Deflection: ±18%
Electrical Specifications:
- Supply Voltage: 4.75V Min to 15V Max
- Signal Swing: ±10% of VCC to ±50% of VCC
- Output Signal Tolerance: ±10% of Output
- Output at Center: ±1%
- Output Impedance: 1.8k ±1%
- Signal Ripple: <1% of Output
- Supply Current: Typically 10mA
- ESD Immunity: >12KV – Correctly Installed
- RFI Rejection: >20V/m – Bare Joystick
- RFI Rejection: >40V/m – Correctly Installed
- Preferred Load: >10K
Materials:
- Body: Glass Reinforced ABS
- Boot: Neoprene
- Shaft: Stainless Steel
- Other: Brass, Acetal, Nylon
Mechanical Specifications:
- Life Cycles: > 10 Million Operations
- Weight: 90 Grams (0.20lb)
