5000

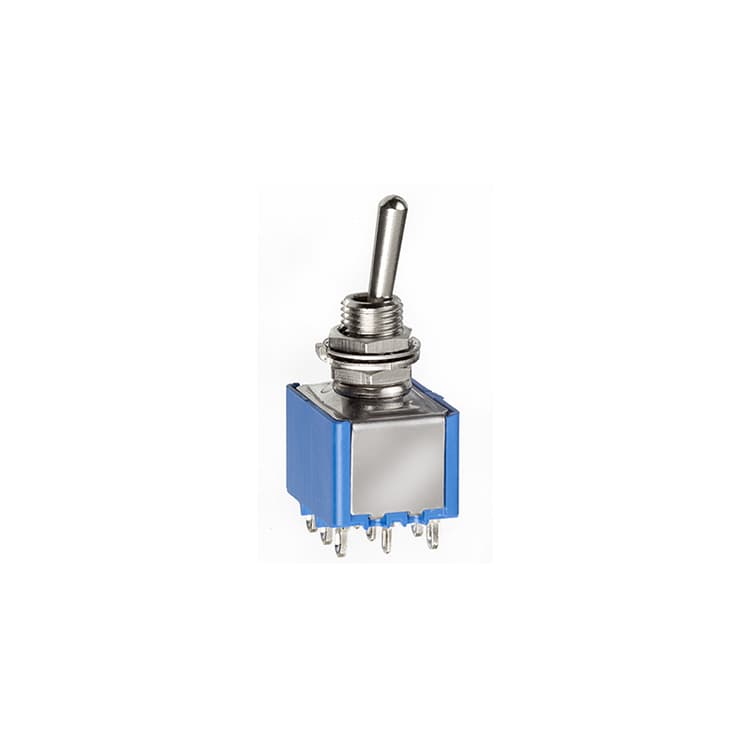

Mini toggles from APEM's 5000 series are known for their robustness and compact design. These mini toggle switches are 6.35 mm wide. They can handle high inrush currents up to 120A for 2 ms. This very versatile series offers a large range of customization possibilities, including various actuators and accessories, catering to diverse application needs.


Whether you need standard or custom miniature toggle switches, this series has options for you. It includes both momentary and maintained toggle switches.

You can choose from up to four pole configurations and many terminal types, including PCB mounting. Designed for performance and reliability, these tiny switches meet strict industry standards like UL, CSA, VDE, and CECC. This makes them perfect for many applications in different industries.

Key Features:
  • Torque: up to 1.25 Nm (0.922 ft-lb) suitable for mini toggle and momentary toggle switches.
  • Panel thickness: accommodates from 2.5 mm with two nuts to 4 mm with one nut, ideal for tiny switch installations.
  • Mechanical life: engineered for 100,000 cycles, ensuring reliability for custom miniature toggle switches.

Key Features

• Torque: 1,25 Nm (.922 Ft.lb) max. applied to nut • Panel thickness: 2.5 mm (.098) with 2 nuts - 4 mm (.157) with 1 nut • Low level or mechanical life: 100,000 cycles
1449 Products
Filters
  1. image placeholder
    5000
    5234ZTH2RCDCSA
    • Finish: Nickel-Plated
    • Levers: 10.5mm/13.5mm
    • Sealing: Unsealed
  2. image placeholder
    5000
    5954ZCT2RCD-3VX408
    • Finish: Nickel-Plated
    • Levers: 3 Locked Positions
    • Sealing: Unsealed
  3. image placeholder
    5000
    5454ZTH2RAGB-1VX681UL
    • Finish: Black
    • Levers: 1 Locked Position
    • Sealing: Epoxy Sealed
  4. image placeholder
    5000
    5744ZTH2RAGB-038-16X601CSA
    • Finish: Black
    • Levers: 5.5mm/8.5mm
    • Sealing: Epoxy Sealed
  5. image placeholder
    5000
    5654WWCT2RADKB-4NX601
    • Finish: Nickel-Plated
    • Levers: 9mm/12mm
    • Sealing: Combined Sealings
  6. image placeholder
    5000
    5444WCT2RADB-9UL
    • Finish: Nickel-Plated
    • Levers: 11.4 mm(0.448in)
    • Sealing: Epoxy Sealed
  7. image placeholder
    5000
    5954CT1RCDGB-038-4NX408CECC
    • Finish: Black
    • Levers: 9mm/12mm
    • Sealing: Epoxy Sealed
  8. image placeholder
    5000
    5254WCT1RCD-1VX404
    • Finish: Nickel-Plated
    • Levers: 1 Locked Position
    • Sealing: Unsealed
  9. image placeholder
    5000
    5264WWCT2RCD-038-3VX408CECC
    • Finish: Nickel-Plated
    • Levers: 3 Locked Positions
    • Sealing: Unsealed
  10. image placeholder
    5000
    5744TH2RAGB-2VCSA
    • Finish: Black
    • Levers: 2 Locked Positions
    • Sealing: Epoxy Sealed
  11. image placeholder
    5000
    5934ZCT2RCDKB-038-4NCECC
    • Finish: Nickel-Plated
    • Levers: 9mm/12mm
    • Sealing: Combined Sealings
  12. image placeholder
    5000
    5464YTH2RCDKB-038-3VX372UL
    • Finish: Nickel-Plated
    • Levers: 3 Locked Positions
    • Sealing: Combined Sealings

Showing 1~ 12 of 1449 Products

...
