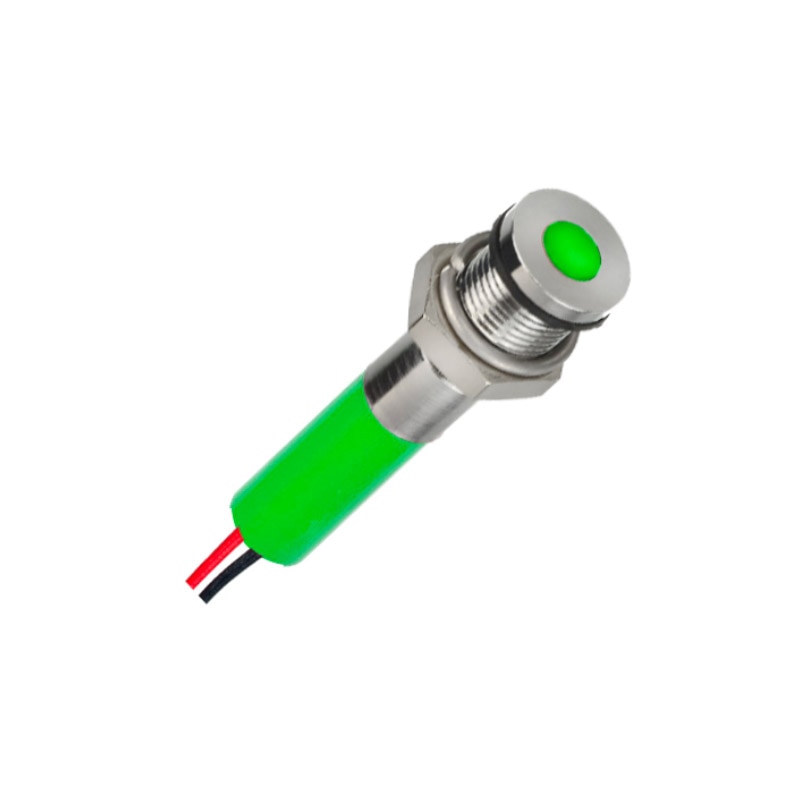

Q8F5CXXG12E
The Q8F5CXXG12E LED Indicator is a versatile and high-quality product that is perfect for a wide range of applications. With its 8 mm Mounting Hole, it can be easily installed in various equipment and devices. The Flush Bezel Style gives it a sleek and modern look, blending seamlessly into any design. Its Rear epoxy Wires provide convenient and secure connections. The Bright Chrome Bezel Finish adds a touch of sophistication to the overall appearance. With its Fixed Light Type Of Illumination, it ensures a consistent and reliable signal. The vibrant Green LED Color makes it highly visible and eye-catching. Operating at a Voltage of 12 VDC, it is energy-efficient and cost-effective. Its IP67 Sealing ensures protection against dust and water, making it suitable for both indoor and outdoor use. Whether you need to indicate status, provide warnings, or convey information, the Q8F5CXXG12E LED Indicator is the perfect choice.
Key Features
- Mounting Hole: 8 mm
- LED Color: Green
- Voltage: 12V DC
- Sealing: IP67
- Terminals: Rear Epoxy Wires
- Bezel Finish: Bright Chrome
- Type Of Illumination: Fixed Light
- Bezel Style: Flush
Specifications
Distinctive Features:
- 5mm colored diffused epoxy lens or 5 mm water clearsuper bright LEDs
- Prominent, recessed and flush bezel styles(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations (2.0 x 0.5) solder lug/faston terminals ontri-color versions
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 20 to 25 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
