Q8
Q8F1CXXY24E
Q8F1CXXY24E

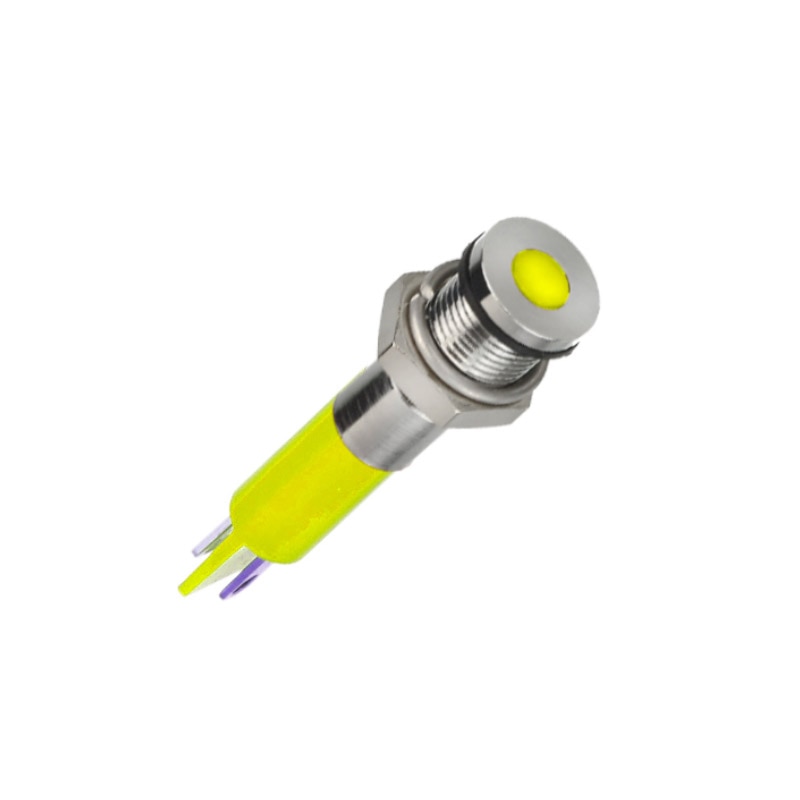

The Q8F1CXXY24E LED Indicator is the perfect solution for your lighting needs. With its 8 mm Mounting Hole, it can easily be installed in any compatible panel. The Flush Bezel Style adds a sleek and modern touch to your design. The Solder Lug Fastons 28 x 08 Terminals ensure a secure connection. The Bright Chrome Bezel Finish adds a touch of elegance. With its Fixed Light Type Of Illumination, you can rely on a steady and consistent glow. The Yellow LED Color adds a vibrant pop of color. Operating at 24 VDC, it provides reliable and efficient lighting. And with its IP67 Sealing, you can trust that it will withstand any environment.
Key Features
Mounting Hole: 8 mm
Led Colour: Yellow
Voltage: 24V DC
Sealing: IP67
Terminals: Solder Lug Fastons (2.8 x 0.8)
Bezel Finish: Bright Chrome
Type Of Illumination: Fixed Light
Bezel Style:
GET DATASHEET
DOWNLOAD 3D FILE
REQUEST A QUOTE
Added to your Quote
Specifications
Distinctive Features:
5mm colored diffused epoxy lens or 5 mm water clearsuper bright LEDs
Prominent, recessed and flush bezel styles(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations (2.0 x 0.5) solder lug/faston terminals ontri-color versions
General Specifications:
Max Reverse Voltage: 5 V
Viewing Angle: 30–100° *
Life Expectancy: 100,000 hours
Temperature Range: –40 to +85 °C *
Torque: 20 to 25 cNm
Environmental Specifications:
Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
6 VDC 5.4 to 6.6 VDC 20 mA
12 VDC 10.8 to 13.2 VDC 20 mA
24 VDC 21.6 to 26.4 VDC 20 mA
28 VDC 25.2 to 30.8 VDC 20 mA
110 VAC 99 to 121 VAC 6 mA
220 VAC 207 to 235 VAC 3 mA
