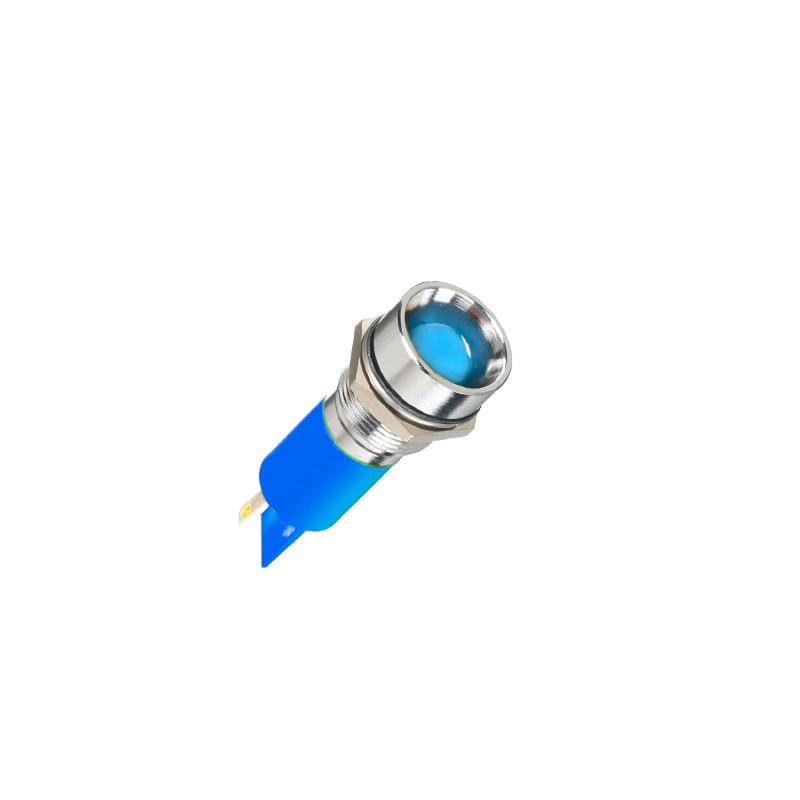

Q12-7P1CXXB12E
The Q12-7P1CXXB12E LED Indicator is a versatile lighting solution that combines sleek design with reliable performance. With a mounting hole diameter of 127 mm, it can be easily installed in various applications. The prominent bezel style adds a touch of sophistication to any device or equipment. The solder lug fastons terminals ensure secure and efficient connectivity. Its bright chrome bezel finish exudes a polished look. With fixed light illumination, it provides a consistent and steady glow. The blue LED color adds a cool and modern aesthetic. Operating at 12 VDC, it offers efficient and low-power consumption. With an IP67 sealing rating, it is highly resistant to dust and water, making it suitable for both indoor and outdoor use.
Key Features
- Mounting Hole: 12.7 mm
- LED Color: Blue
- Voltage: 12V DC
- Sealing: IP67
- Bezel Finish: Bright Chrome
- Type Of Illumination: Fixed Light
- Bezel Style: Prominent
Specifications
Distinctive Features:
- 8 mm colored diffused epoxy lens or 8 mm water clearsuper bright LEDs
- 2VDC - 220VAC
- (2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 75 cNm* Dependant on Mode
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
