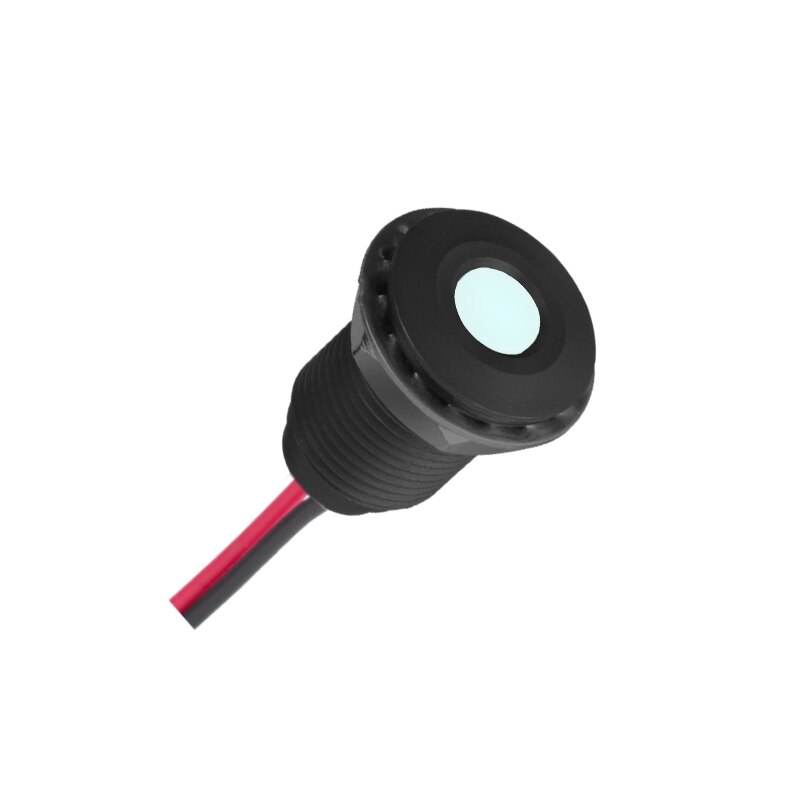

Q10F5ANXXW24E
Panel mount LED indicators with 5 mm coloured diffused epoxy lens or 5 mm water clear super bright LEDs with fixed light, flashing and RGB options.
Key Features
- Series: Q
- Sealing: IP67
- Voltage: 24 VDC
- Led Color: White
- Terminals: Rear epoxy Wires
- Bezel Style: Flush
- Bezel Finish: Black
- Mounting Hole: Ø10 mm
- Type Of Illumination: Fixed Light
Specifications
Distinctive Features:
- 5 mm flush diffused LED, standard, hyper bright or water clear
- Flush chamfered bezel style(200 mm long) wire terminations
- Available in RGB
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 60° *
- Life Expectancy: 100,000 hours
- Torque: 20 to 25 cNm * Dependant on Model
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
- Temperature Range: –40 to +85 °C (operation & storage)
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
Materials:
- Stainless Steel 316L or Anodized Aluminium with potted rear end
