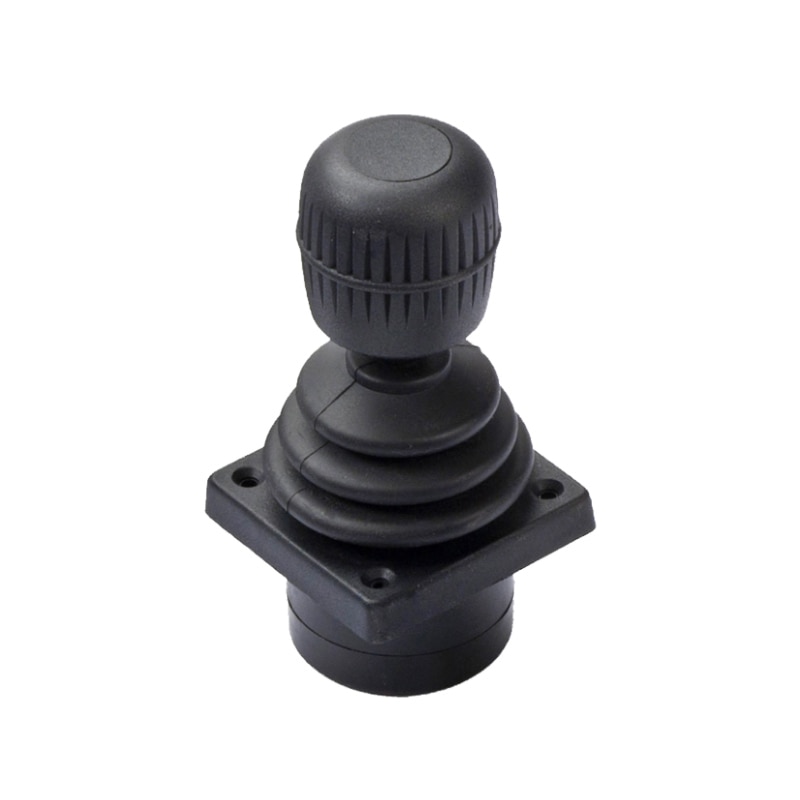

3150DAL600
The 3000 Series is the very latest generation in high precision contactless joysticks

Key Features
- Handle: Third Axis
- Bezel: Square (drop-in)
- Gain: ±50%xV
- Limiter: Diamond
- Series: 3
- Configuration: Standard
Specifications
Distinctive Features:
- One, two or three axis
- Analog or PWM outputs
- Low profile less than 20 mm below panel depth5 V or 3.3 V operation
- Metal mechanism
General Specifications:
- Life Cycles: 10,000,000 cycles (5,000,000 for 3 axis joysticks)
- Seal Above Panel: IP65 (dependant on configuration)
Environmental Specifications:
- Operating Temperature: -25ºC to 70ºC (-13ºF to 158ºF)
- Storage Temperature: -40ºC to 70ºC (-40ºF to 158ºF)
- EMC Emission: Complies with EN 61000-6-3:2001, CISPR 22:2005, Class B 30MHz–11GHz
- ESD: Complies with EN61000-4-2 (extended) ±8KV (20 contacts) & ±15KV (20 air discharges)
- EMC Immunity: 100V/m, 80MHz-2.7GHz, 1KHz 80% sine wave modulation, EN 61000-4-3 (extended)
- Vibration: 100Hz – 200Hz @ 0.13g /Hz, total 3.6gRMS (1 Hour in each of the three mutually perpendicular axis)
Electrical Specifications:
- Gain (Output Voltage Span): ±10% x V to ±50% x V
- Output at Center: V/2 ±(5% x Gain)
- Power Supply: 5V ±0.5V Transient free (Configs 1, 3, 4 & 5) or 3.3V ±0.1V (Config 2)
- Center Tap Impedance: 1K1
- Center Detect Output: Pulled high within joystick via 2K2 to +V, and smoothed to 0V with 100nF
- Sensor Type: Hall effect
- Analog PWM CAN J1939 & CANopen outputs
- Current Consumption: 5V <13mA (Two axis) <20mA (Three axis) 3.3V <24mA (Two axis) <40mA (Three axis)
- Loads: Minimum 10K, preferred 100K+
Materials:
- Shaft: Stainless steel
- Boot: Neoprene
- Handles:
- BL, E, Q, AL - Nylon
- AR - Aluminum
- K - ABS
- T - Stainless steel
Mechanical Specifications:
- Weight: 100g (0.20lb) nominal
- Breakout Force: 1.3N (2.86lbf)
- Mechanical Angle of Movement: 36˚ for X and Y axis (subject to limiter) 50˚ for Z axis (subject to handle)
- Max Load to Mechanism: 400N (881.85lbf)
