646H/2G

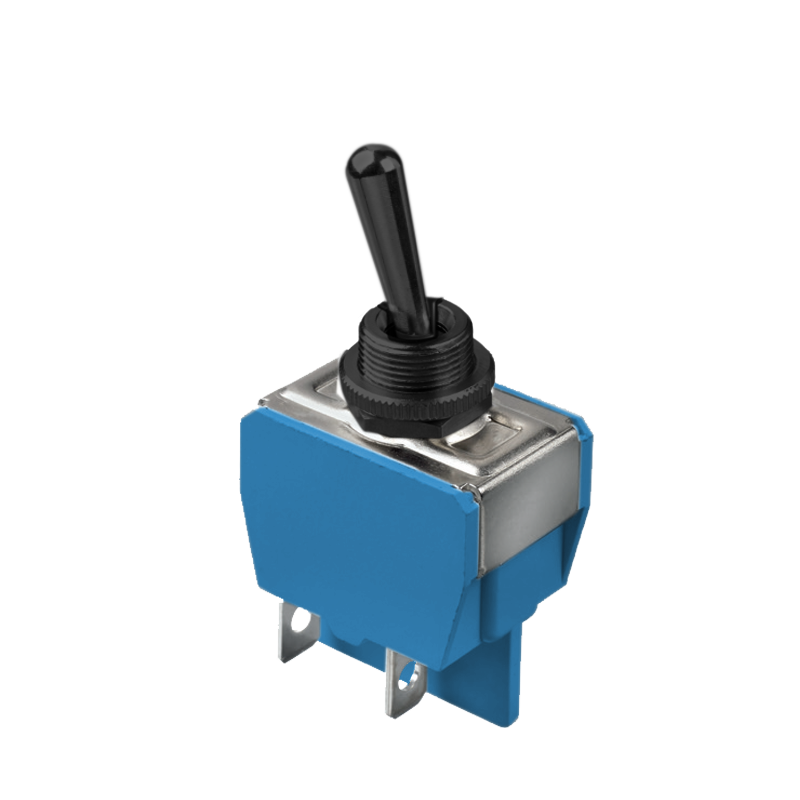

The 646H/2G Panel Switch, also known as a toggle switch, is a versatile and reliable electrical component. With its double pole design, it offers enhanced functionality and efficiency. It is equipped with metal lever solder lug quick connect terminals, ensuring secure and stable connections. Whether you need to control lighting, motors, or other electrical devices, this switch is an excellent choice. Its ON ON electrical function allows for easy and convenient operation. With its durable construction and easy installation, the 646H/2G Panel Switch is the perfect solution for your electrical needs.
Key Features
- Number Of Poles: Double Pole
- Electrical Functions: ON ON
- Options: Black Finish
- Terminals: Metal Lever Solder Lug Quick Connect Terminals
Specifications
Distinctive Features:
- Robust mechanism
- High current/voltage rating
- Insulated or metal lever
- UL, CSA and NF-VDE (EN 61058-1) approved
General Specifications:
- Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
- Panel thickness: 4.5 mm (.177) max. between 2 nuts
Environmental Specifications:
- Operating temperature : -20 °C to +55 °C (-20 °F to 131 °F)
Electrical Specifications:
- Max. current/voltage ratings: see full data sheet
- Peak current: 30 A max. during 1/2 sine, 250 VAC
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1,000 MΩ min. at 500 VDC
- Dielectric strength:2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between terminals and frame
- Electrical life: 10,000 cycles at full load
