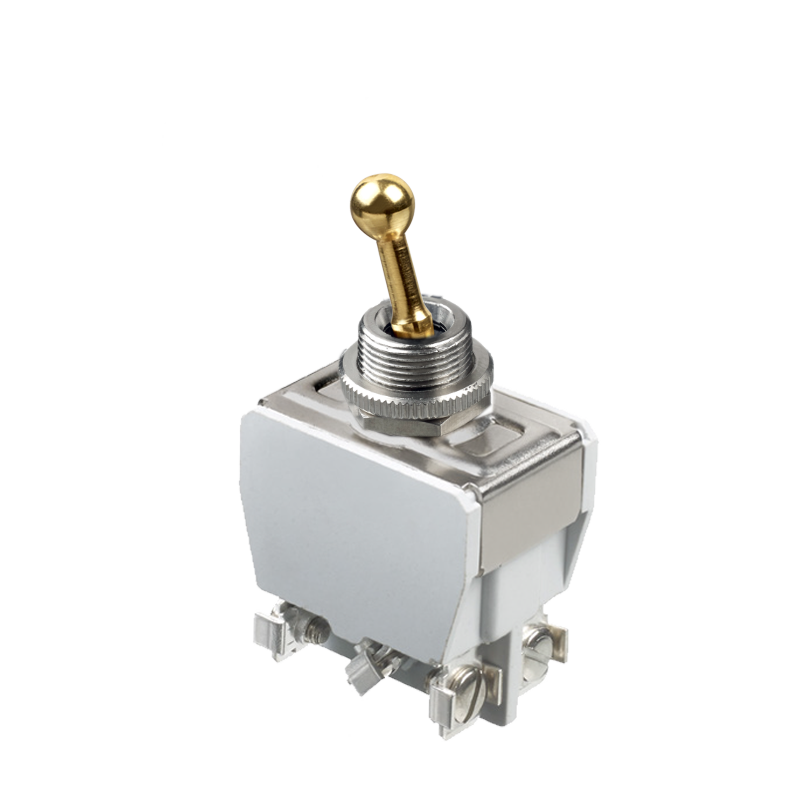

646H-6
The 646H-6 Panel Switch, with its sleek design and durable construction, is the perfect choice for any electrical application. With its double pole configuration, it ensures reliable and efficient power distribution. The switch offers a variety of electrical functions, allowing for seamless control and operation. Equipped with metal lever screw terminals, it ensures secure and stable connections. Upgrade your electrical system with the 646H-6 Panel Switch for enhanced performance and peace of mind.
Key Features
- Number Of Poles: Double Pole
- Actuator Option: Retro-Style Actuator
- Electrical Functions: ON ON
- Terminals: Metal Lever Screw Terminals
Specifications
Distinctive Features:
- Robust mechanism
- High current/voltage rating
- Insulated or metal lever
- UL, CSA and NF-VDE (EN 61058-1) approved
General Specifications:
- Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
- Panel thickness: 4.5 mm (.177) max. between 2 nuts
Environmental Specifications:
- Operating temperature : -20 °C to +55 °C (-20 °F to 131 °F)
Electrical Specifications:
- Max. current/voltage ratings: see full data sheet
- Peak current: 30 A max. during 1/2 sine, 250 VAC
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1,000 MΩ min. at 500 VDC
- Dielectric strength:2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between terminals and frame
- Electrical life: 10,000 cycles at full load
