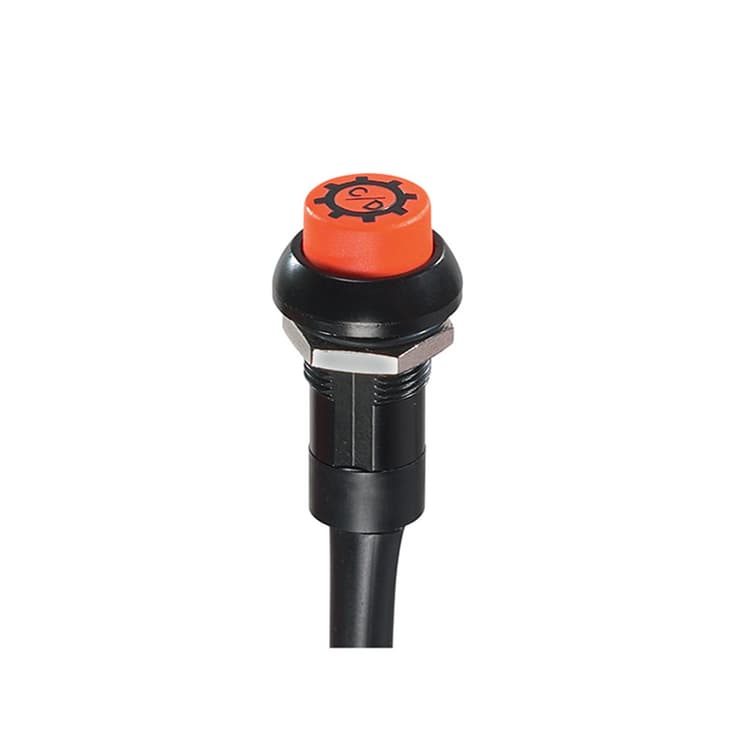

IP - latching

Illuminated or non-illuminated latching action pushbuttons for harsh environments, sealed to IP67. Round or square actuator, available in many different colors. Numerous terminal options, gold plated silver contacts.

Main features

  • Latching action: actuator remains in the low position when ON
  • Illuminated and non-illuminated
  • Flat round actuator for optional marking
  • Compact: behind-panel depth less than 20 mm (.787)
  • High brightness illumination
  • Four LED colors
Product detail
Product detail

Key Features

• Panel thickness: 1.5 mm (.059) min. 5.5 mm (.217) max. • Total travel: 2.5 mm (.098) +/- 0.3 mm • Typical operating force: 10 N • Low level/mechanical life : 200,000 cycles • Torque : 1.5 Nm max. applied to nut • Soldering : 320°C max. for 3 sec.
444 Products
Filters
  1. image placeholder
    IP - latching
    IPR5SCD6104
    • Options: High Actuator, Non-Illuminated, Round Models Only
    • Mounting: Solder Lug
    • Actuator Colors: Red
  2. image placeholder
    IP - latching
    IPR5SCD5104
    • Options: High Actuator, Non-Illuminated, Round Models Only
    • Mounting: Solder Lug
    • Actuator Colors: Yellow
  3. image placeholder
    IP - latching
    IPR5SAD9
    • Mounting: Solder Lug
    • Actuator Colors: Orange
    • Contact Materials: Silver (Gold-Plated)
  4. image placeholder
    IP - latching
    IPR5SAD7/1
    • Mounting: Solder Lug
    • Actuator Colors: White
    • Contact Materials: Silver (Gold-Plated)
  5. image placeholder
    IP - latching
    IPR5SAD6
    • Mounting: Solder Lug
    • Actuator Colors: Red
    • Contact Materials: Silver (Gold-Plated)
  6. image placeholder
    IP - latching
    IPR5SAD5
    • Mounting: Solder Lug
    • Actuator Colors: Yellow
    • Contact Materials: Silver (Gold-Plated)
  7. image placeholder
    IP - latching
    IPR5SAD3
    • Mounting: Solder Lug
    • Actuator Colors: Green
    • Contact Materials: Silver (Gold-Plated)
  8. image placeholder
    IP - latching
    IPR5SAD1
    • Mounting: Solder Lug
    • Actuator Colors: Blue
    • Contact Materials: Silver (Gold-Plated)
  9. image placeholder
    IP - latching
    IPR5FAD7/1
    • Mounting: Flying Leads Standard
    • Actuator Colors: White
    • Contact Materials: Silver (Gold-Plated)
  10. image placeholder
    IP - latching
    IPR5FAD6
    • Mounting: Flying Leads Standard
    • Actuator Colors: Red
    • Contact Materials: Silver (Gold-Plated)
  11. image placeholder
    IP - latching
    IPR5FAD5
    • Mounting: Flying Leads Standard
    • Actuator Colors: Yellow
    • Contact Materials: Silver (Gold-Plated)
  12. image placeholder
    IP - latching
    IPR5FAD3
    • Mounting: Flying Leads Standard
    • Actuator Colors: Green
    • Contact Materials: Silver (Gold-Plated)

Showing 1~ 12 of 444 Products

...
