SMT TG

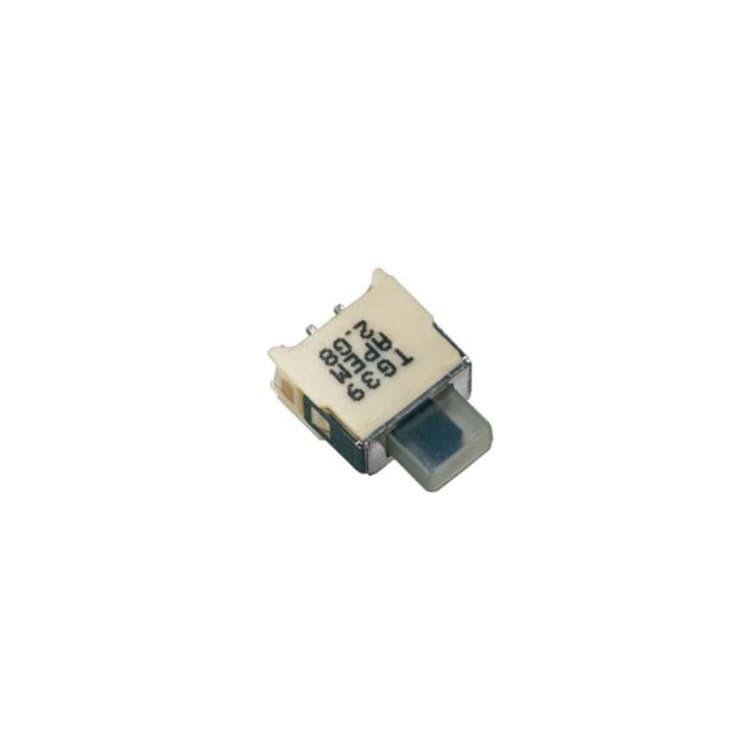

Surface mount tiny washable slide switches with single pole, ON-ON or ON-OFF-ON configurations. Gold plated brass contacts standard.


Main features

  • Entirely designed for surface mount
  • Tape and reel packaging
  • Reflow solderable: High temperature plastic materials, Tin plated ground plate
  • Terminal coating : tin alloy over nickel plating
  • Terminals turned to the outside, preventing the shadow effect in infrared soldering and permitting visual inspection of solder joints
  • Distance between case and circuit : 0.55 mm (.021) End stackable with 10.16 mm (.40) pitch
  • Available with positioning pins to ensure switch orientation during the reflow process and increasing switch mechanical resistance
  • Protected against electrostatic discharges (ESD) up to 10 KV
  • Washable :Construction withstands cleaning processes, including hot water under pressure
Product detail
Product detail

Key Features

• Actuator travel : 2.60 mm (.102) • Reflow soldering : infrared, vapor phase or infrared convection • Washable per IEA-RS448-2 : - water + detergent - preferred - solvents
