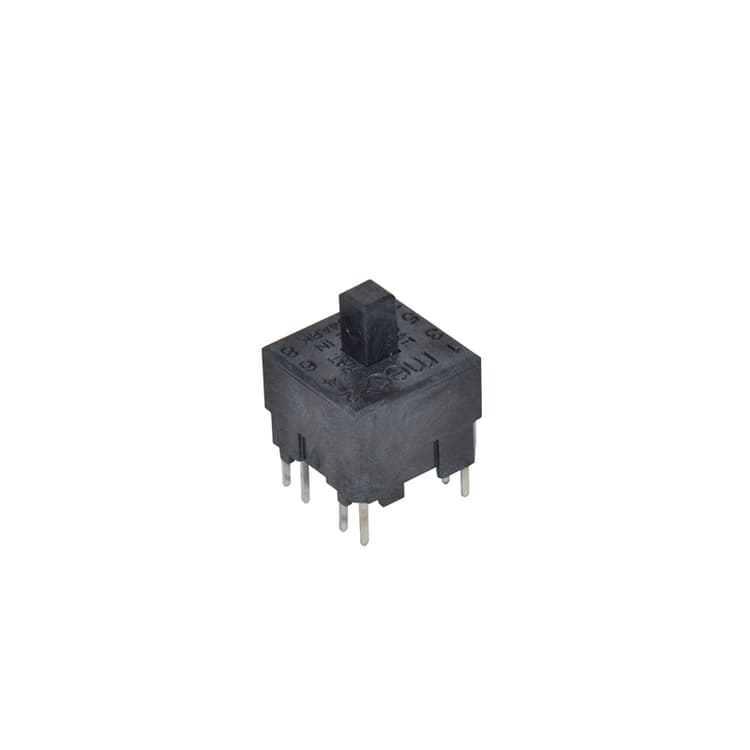

Unimec™ 154xx

Unimec™ is a reliable switch with a unique contact concept - switch is capable of producing eight different contact functions depending on the PC board layout. Unimec™ switches are known for their crisp, audible, tactile feel.

Caps that fit Unimec™: 16300 and 16700.


Main features

  • h=15.7 mm
  • 12.6 x12.6 mm
  • Momentary, latching or quiet
  • IP54 sealing
  • Up to 10,000,000 cycles
  • TH
Product detail
Product detail

Key Features

• Max. 250 mA - 120 V - 9 W AC - 6 W DC • 2 pole • Momentary or latching • 8 contact functions • Temperature range: -40/+160 ºC • Through-hole version (TH)
6 Products
Filters
  1. image placeholder
    Unimec™ 154xx
    1545009
    • Color: Black
    • Function: Latching
    • Terminals: Quiet
  2. image placeholder
    Unimec™ 154xx
    1540009
    • Color: Black
    • Function: Momentary
    • Terminals: Quiet
  3. image placeholder
    Unimec™ 154xx
    1545209
    • Color: Black
    • Function: Latching
    • Terminals: Gold
  4. image placeholder
    Unimec™ 154xx
    1545109
    • Color: Black
    • Function: Latching
    • Terminals: Silver
  5. image placeholder
    Unimec™ 154xx
    1540209
    • Color: Black
    • Function: Momentary
    • Terminals: Gold
  6. image placeholder
    Unimec™ 154xx
    1540109
    • Color: Black
    • Function: Momentary
    • Terminals: Silver

Showing 1~ 6 of 6 Products
