Designmec 10X

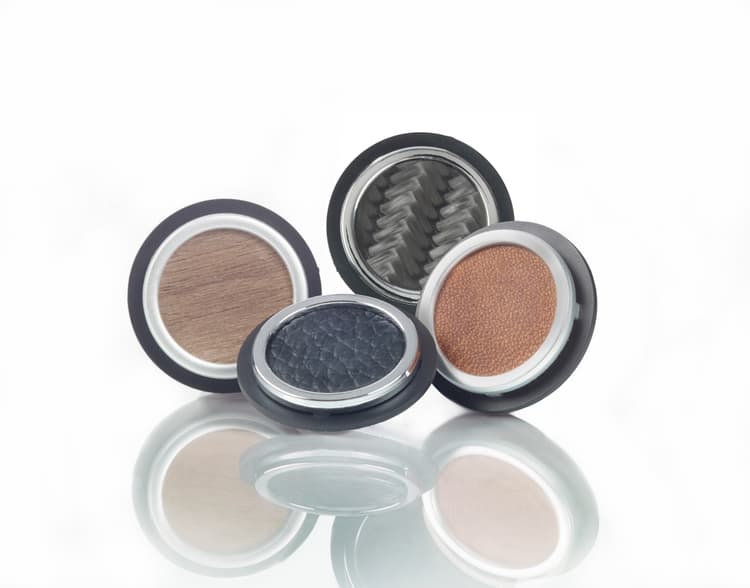

Designmec is a groundbreaking round keycap with a personalized deco insert for aesthetic panel designs to enrich the user experience with an exclusive look and feel.
This cap solution gives an opportunity to build your own cap without tooling costs. The caps three parts are all customizable, escpecially the deco insert where you can choose your own material and therefore match the keycap to the front panel material, so the operator gets the feel of the material when pressing the button.


Main features

  • Different materials can be used for the deco insert
  • Deco insert thickness 1-2.5 mm
  • Design flexibility with three customisable parts
  • Ø22.0 mm
  • Total height 13.9-15.4 mm


Customization possibilities

  • Ring: different metal looks or plastic
  • Deco insert: material of your choice
  • Legends: UV printing
  • Bottom part: black or frosted white
  • Illumination: integrated LED and/or chip-LEDs on the PCB
Product detail
Product detail

Key Features

• Ø22.0 mm • Total height 13.9 - 15.4 mm • Below panel height 12.0 mm • Standard options: - ring: aluminum chrome, shiny chrome, black ABS and frosted white PC - Deco insert: brown leather, black leather, walnut veneer - Bottom part: black ABS or frosted white PC • Print option: UV printing • Panel cut-out: Ø22.6 mm • Recommended panel thickness: 2.0 mm
4 Products
Filters
  1. image placeholder
    Designmec 10X
    5GTH9206110XA16BT99C08D09UV
    • Ø22.0 mm
    • Total height 13.9 - 15.4 mm
    • Below panel height 12.0 mm
  2. image placeholder
    Designmec 10X
    5GSH9658210XA16BT99C08D16UV
    • Ø22.0 mm
    • Total height 13.9 - 15.4 mm
    • Below panel height 12.0 mm
  3. image placeholder
    Designmec 10X
    5GSH920822210XA99BL01C08D16UV
    • Ø22.0 mm
    • Total height 13.9 - 15.4 mm
    • Below panel height 12.0 mm
  4. image placeholder
    Designmec 10X
    5GSH920822210XA16BT99C08D16UV
    • Ø22.0 mm
    • Total height 13.9 - 15.4 mm
    • Below panel height 12.0 mm

Showing 1~ 4 of 4 Products
