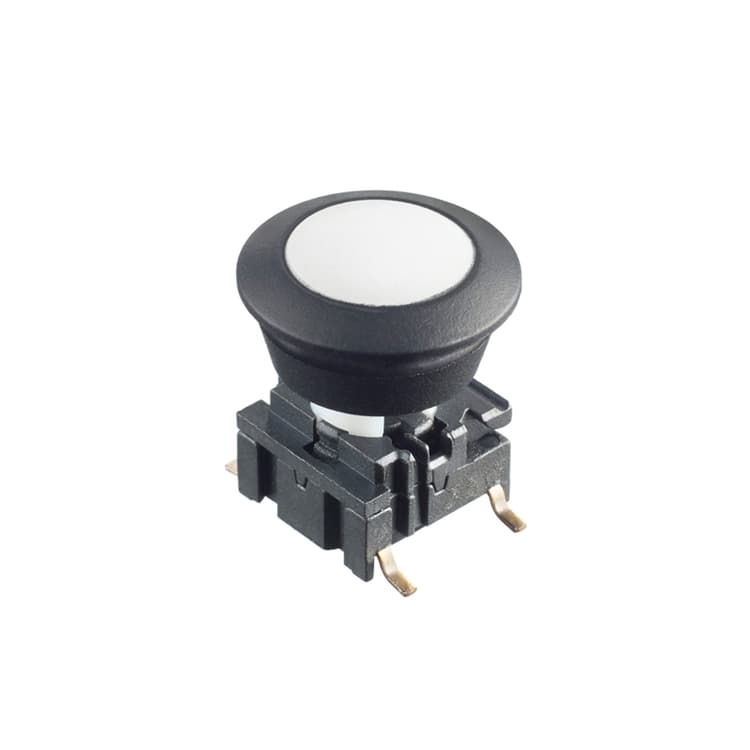

AQW solution

The AQW is a flexible height front panel sealed solution designed to meet the demands of challenging environments. With its exceptional illumination capabilities and utilization of high-performing Multimec 5 series switches, this product offers a seamless solution for a wide range of applications.
AQW solution can be used with 10AQS cap for illumination and 1SS for non-illuminated functions. It is also the 1SS cap that provides the options of variable heights with the 16.0 - 22.5 mm options.
With a panel sealed rating of IP67, it guarantees protection against dust and water ingress. The snap-in mounting mechanism simplifies the installation process, while its longevity is ensured with a durability of 500,000 cycles.
Applications include (but are not limited to) special vehicles, agriculture, material handling, off-road vehicles, and integration into joysticks.


Main features

  • Ø14.0 mm above panel
  • Ø11.0 mm panel cut out
  • Panel sealed to IP67
  • Lifetime (sealing): 500,000 cycles
  • Snap-in mounting of the sealing
  • Excellent illumination option with 10AQS
  • Variable total heights with 1SS caps
  • Based on Multimec 5E/5G switches
Product detail
Product detail

Key Features

• Ø 14.0 mm above the panel • h=14.1 - 23.0 mm • Standard colors: -solid color: black rim, grey center -transparent color: black rim, frosted white center • Panel cut-out: Ø11.0 mm
