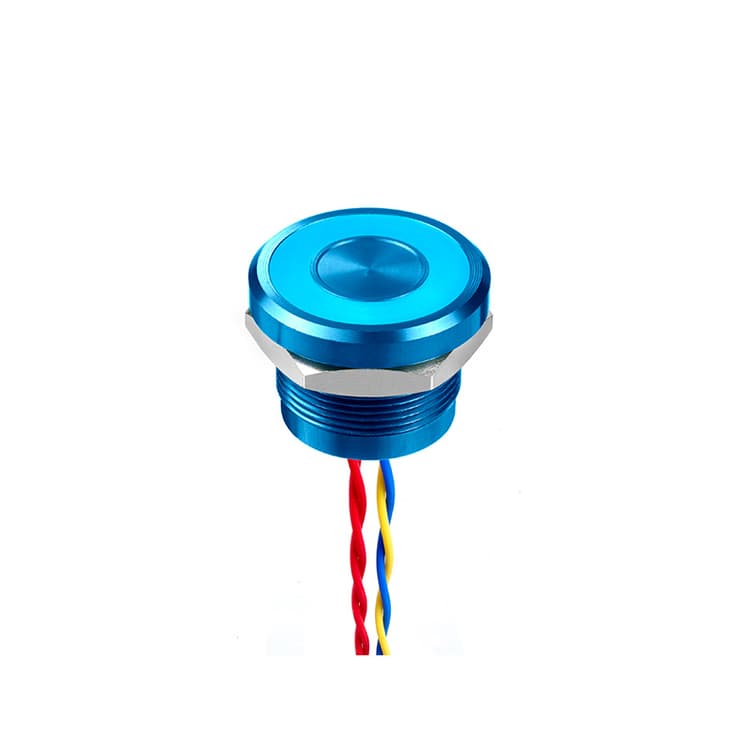

PBA 22 mm

These switches are part of the PBA series including models with dia. 16, 19 or 22 mm bushing. Sealed to IP68 or IP69K, easy to clean metal surface, long life (50 million cycles), ring or dot illumination, custom configurations.


Main features

  • Sealed to IP68 or IP69K (switches mounted on panel)
  • Easy to clean metal surface
  • Long life (50 million cycles)
  • Ring illumination

Advantages

APEM Piezo switches are based on a solid-state output allowing for a very long life expectancy (more than 50 millions cycles), ideal for demanding applications where reliability is most important. The flat actuation surface is completely closed, preventing the intrusion of liquids or other contaminants, perfect for surface cleaning required in the medical and food-processing industries. High performance sealing (IP68 and IP69K) is achieved due to the one-piece construction of the switch. No external power supply is required. The screw-machined metal housing construction and APEM’s vertical integration allow for the manufacture of a variety of shapes.

Product detail
Product detail

Key Features

• Operating force : 2 to 6N • Life expectancy : 50 million cycles
105 Products
Filters
  1. image placeholder
    PBA 22 mm
    PBARZBFB000E2A
    • Ratings: Standard
    • Terminals: Flying Leads
    • LED Color : Red/Green
  2. image placeholder
    PBA 22 mm
    PBARZBFB000E0S
    • Ratings: Standard
    • Terminals: Flying Leads
    • LED Color : Red
  3. image placeholder
    PBA 22 mm
    PBARZBFB000D2A
    • Ratings: Standard
    • Terminals: Flying Leads
    • LED Color : Red/Green
  4. image placeholder
    PBA 22 mm
    PBARZBCB000E3A
    • Ratings: Standard
    • Terminals: Cable
    • Bushing Operator: Flat Operator Height 45 mm (1.77in) Available with Thin or Large Illuminated Ring Only
  5. image placeholder
    PBA 22 mm
    PBARZAFB002E2C
    • Ratings: 1A 24V AC/DC No Pulse, Only Function A
    • Terminals: Flying Leads
    • Bushing Operator: Flat Operator Height 45 mm (1.77in) Available with Thin or Large Illuminated Ring Only
  6. image placeholder
    PBA 22 mm
    PBARZAFB002E2A
    • Ratings: 1A 24V AC/DC No Pulse, Only Function A
    • Terminals: Flying Leads
    • LED Color : Red/Green
  7. image placeholder
    PBA 22 mm
    PBARZAFB000H3A
    • Ratings: Standard
    • Terminals: Flying Leads
    • Bushing Operator: Flat Operator Height 45 mm (1.77in) Available with Thin or Large Illuminated Ring Only
  8. image placeholder
    PBA 22 mm
    PBARZAFB000H2A
    • Ratings: Standard
    • Terminals: Flying Leads
    • LED Color : Red/Green
  9. image placeholder
    PBA 22 mm
    PBARZAFB000H0S
    • Ratings: Standard
    • Terminals: Flying Leads
    • LED Color : Red
  10. image placeholder
    PBA 22 mm
    PBARZAFB000G2A
    • Ratings: Standard
    • Terminals: Flying Leads
    • LED Color : Red/Green
  11. image placeholder
    PBA 22 mm
    PBARZAFB000E3I
    • Ratings: Standard
    • Terminals: Flying Leads
    • Bushing Operator: Flat Operator Height 45 mm (1.77in) Available with Thin or Large Illuminated Ring Only
  12. image placeholder
    PBA 22 mm
    PBARZAFB000E3F
    • Ratings: Standard
    • Terminals: Flying Leads
    • Bushing Operator: Flat Operator Height 45 mm (1.77in) Available with Thin or Large Illuminated Ring Only

Showing 1~ 12 of 105 Products

...
