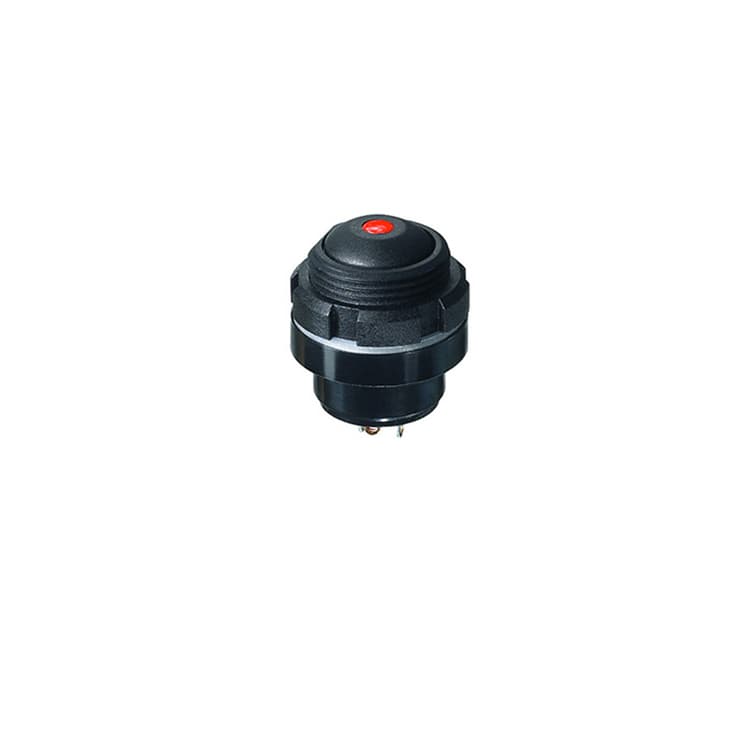

IZ - plastic - momentary

The IZ series is a rear mounted pushbutton, available with a polyamide or a metal case. This product has been designed to reduce the assembly cost in 2 application types: wave soldering and when using a connector. The IZ series allows flush panel mounting and makes dismounting easier.

Main features

  • Rear mounting for easier installation
  • Momentary models
  • Screw version available up to 4A
  • Sealed to IP67
  • Illuminated or non-illuminated
  • Flat actuator for optional marking
Product detail
Product detail

Key Features

• Panel thickness: 3 mm (.118) max. • Total travel: 1.8 mm (.070) +/- 0.3 mm • Typical operating force: 6 N +/- 2 N • Low level or mechanical life: 1,000,000 cycles • Torque : 0.7 Nm max. applied to nut • Soldering: 320 °C max. for 3 sec.
134 Products
Filters
  1. image placeholder
    IZ - plastic - momentary
    IZPR3V232
    • Model: Thermoplastic
    • Mounting: Screw, Non-Illuminated
    • LED Color : Non-Illuminated
  2. image placeholder
    IZ - plastic - momentary
    IZPP3F462L0W
    • Model: Thermoplastic
    • Mounting: Flying Leads
    • LED Color : White
  3. image placeholder
    IZ - plastic - momentary
    IZPR3P4A2L0S
    • Model: Thermoplastic
    • Mounting: Straight PC
    • LED Color : Super Red
  4. image placeholder
    IZ - plastic - momentary
    IZPR3P482L0W
    • Model: Thermoplastic
    • Mounting: Straight PC
    • LED Color : White
  5. image placeholder
    IZ - plastic - momentary
    IZPR3F4B2
    • Model: Thermoplastic
    • Mounting: Flying Leads
    • LED Color : Non-Illuminated
  6. image placeholder
    IZ - plastic - momentary
    IZPR3F442LSG
    • Model: Thermoplastic
    • Mounting: Flying Leads
    • LED Color : Red/Green
  7. image placeholder
    IZ - plastic - momentary
    IZPP3P2B2
    • Model: Thermoplastic
    • Mounting: Straight PC
    • LED Color : Non-Illuminated
  8. image placeholder
    IZ - plastic - momentary
    IZPP3F472L0W
    • Model: Thermoplastic
    • Mounting: Flying Leads
    • LED Color : White
  9. image placeholder
    IZ - plastic - momentary
    IZPP3F452L0S
    • Model: Thermoplastic
    • Mounting: Flying Leads
    • LED Color : Super Red
  10. image placeholder
    IZ - plastic - momentary
    IZPR3P492L0G
    • Model: Thermoplastic
    • Mounting: Straight PC
    • LED Color : Green
  11. image placeholder
    IZ - plastic - momentary
    IZPR3P472
    • Model: Thermoplastic
    • Mounting: Straight PC
    • LED Color : Non-Illuminated
  12. image placeholder
    IZ - plastic - momentary
    IZPP3S492LSG
    • Model: Thermoplastic
    • Mounting: Solder Lug
    • LED Color : Red/Green

Showing 1~ 12 of 134 Products

...
