IX

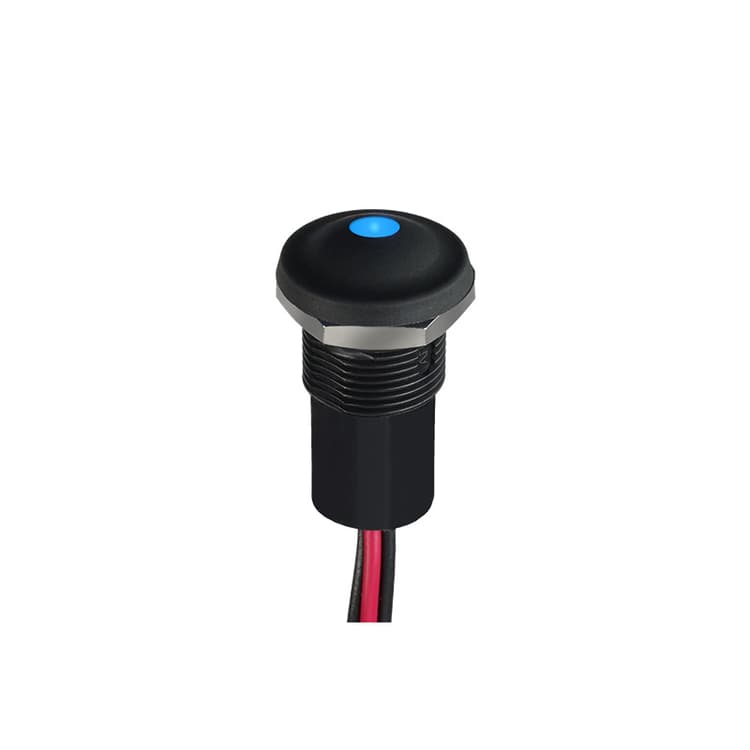

APEM’s popular I series range of pushbuttons is now evolving with the new IX series, designed to meet demanding markets. The IX series combines the high qualities of the IP and IA series with a backlit switch, a 12 mm diameter compact bushing and a flexible elastomer membrane actuator. IX series is recommended for harsh environments and all key markets of APEM: material handling, agriculture machinery, defense …


Key features

  • Pushbutton for harsh environment
  • Illuminated or non-illuminated
  • Compact (12 mm bushing)
  • Tactile effect
  • Sealing : IP67, IP69K
  • Marking on request
Product detail
Product detail

Key Features

• Panel thickness : 1.5 to 6 mm • Total travel : 2 mm (.078) ± 0.3 mm • Typical operating force : - function 3 (NO) 7 N ± 2 N - function 5 (NC/NO) 8.5 N ± 2 N • Low level/mech. life : 1,000,000 cycles • Torque : 0.5 Nm (0.6 Nm max.) applied to nut • Soldering : 320 °C (608 °F) max. for 3 sec.
42 Products
Filters
  1. IXP5W12GRXKH - IX
    IX
    IXP5W12GRXKH
    • Markings: Illuminated Ring
    • Mounting: 24 AWG Wires
    • LED Color : Green
  2. IXP5W12FRXKH - IX
    IX
    IXP5W12FRXKH
    • Markings: Illuminated Ring
    • Mounting: 24 AWG Wires
    • LED Color : Red/Green
  3. IXP5W02RRXKH - IX
    IX
    IXP5W02RRXKH
    • Markings: Illuminated Ring
    • Mounting: 24 AWG Wires
    • LED Color : Red
  4. IXP5W02BRXKH - IX
    IX
    IXP5W02BRXKH
    • Markings: Illuminated Ring
    • Mounting: 24 AWG Wires
    • LED Color : Blue
  5. IXP5S16M - IX
    IX
    IXP5S16M
    • Markings: No Marking
    • Mounting: Solder Lug
    • Actuator Colors: Red
  6. IXP5S15M - IX
    IX
    IXP5S15M
    • Markings: No Marking
    • Mounting: Solder Lug
    • Actuator Colors: Yellow
  7. IXP5S14M - IX
    IX
    IXP5S14M
    • Markings: No Marking
    • Mounting: Solder Lug
    • Actuator Colors: Gray
  8. IXP5S13M - IX
    IX
    IXP5S13M
    • Markings: No Marking
    • Mounting: Solder Lug
    • Actuator Colors: Green
  9. IXP5S12M - IX
    IX
    IXP5S12M
    • Markings: No Marking
    • Mounting: Solder Lug
    • Actuator Colors: Black
  10. IXP5S12GRXKH - IX
    IX
    IXP5S12GRXKH
    • Markings: Illuminated Ring
    • Mounting: Solder Lug
    • LED Color : Green
  11. IXP5S12BRXN9 - IX
    IX
    IXP5S12BRXN9
    • Markings: Symbol Power
    • Mounting: Solder Lug
    • LED Color : Blue
  12. IXP5S11M - IX
    IX
    IXP5S11M
    • Markings: No Marking
    • Mounting: Solder Lug
    • Actuator Colors: Blue

Showing 1~ 12 of 42 Products
