IS

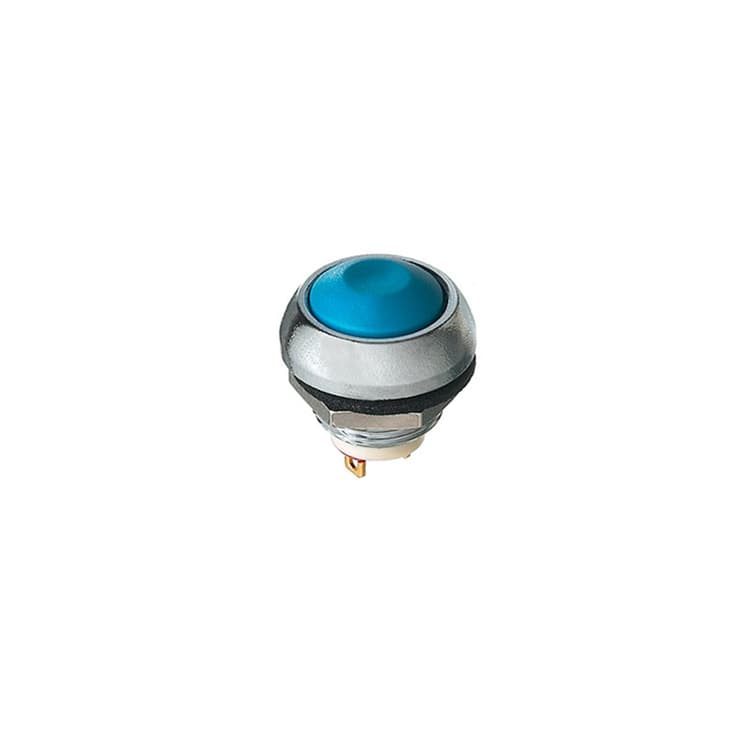

Sealed pushbutton switches with threaded bushing. Compact and light in weight with50% reduction in weight compare to metallic models.

Main features

  • Behind panel depth of 13mm (.512)
  • Tactile feedback
  • Sealed to IP67
Additional sealing by silicone boot for protection against frost and abrasion by sand.


Product detail
Product detail

Key Features

• Panel thickness: 1,5 mm (.059) min. - 4 mm (.157) max. • Total travel: 1.7 mm (.066) +/- 0.3 mm • Typical operating force: 4 N +/- 3 N • Low level or mechanical life: 1,000,000 cycles • Torque (applied to nut): 1 Nm max. with metal nut U166 1.5 Nm max. with plastic nut U4248 • Soldering: 300 °C max. for 3 seconds
110 Products
Filters
  1. image placeholder
    IS
    ISP3PAD400075UL
    • Options: Reduced Bezel Frontal Mounting (15mm,0.590in)
    • Mounting: Straight PC
    • Approvals: Consult Factory for Details of Approved Models
  2. image placeholder
    IS
    ISR3Z1AD7/110104UL
    • Options: High Actuator
    • Mounting: Quick Connect
    • Approvals: Consult Factory for Details of Approved Models
  3. image placeholder
    IS
    ISR3Z1AD7/108234UL
    • Options: Reduced Bezel Standard Mounting (15mm,0.590in)
    • Mounting: Quick Connect
    • Approvals: Consult Factory for Details of Approved Models
  4. image placeholder
    IS
    ISR3SADA08234UL
    • Options: Reduced Bezel Standard Mounting (15mm,0.590in)
    • Mounting: Solder Lug
    • Approvals: Consult Factory for Details of Approved Models
  5. image placeholder
    IS
    ISP3Z1AD400104UL
    • Options: High Actuator
    • Mounting: Quick Connect
    • Approvals: Consult Factory for Details of Approved Models
  6. image placeholder
    IS
    ISP3SAD908075UL
    • Options: Reduced Bezel Frontal Mounting (15mm,0.590in)
    • Mounting: Solder Lug
    • Approvals: Consult Factory for Details of Approved Models
  7. image placeholder
    IS
    ISP3PAD7/120234UL
    • Options: Reduced Bezel Standard Mounting (15mm,0.590in)
    • Mounting: Straight PC
    • Approvals: Consult Factory for Details of Approved Models
  8. image placeholder
    IS
    ISR3Z1AD920104UL
    • Options: High Actuator
    • Mounting: Quick Connect
    • Approvals: Consult Factory for Details of Approved Models
  9. image placeholder
    IS
    ISR3Z1AD7/110075UL
    • Options: Reduced Bezel Frontal Mounting (15mm,0.590in)
    • Mounting: Quick Connect
    • Approvals: Consult Factory for Details of Approved Models
  10. image placeholder
    IS
    ISR3PAD7/108234UL
    • Options: Reduced Bezel Standard Mounting (15mm,0.590in)
    • Mounting: Straight PC
    • Approvals: Consult Factory for Details of Approved Models
  11. image placeholder
    IS
    ISP3SAD820104UL
    • Options: High Actuator
    • Mounting: Solder Lug
    • Approvals: Consult Factory for Details of Approved Models
  12. image placeholder
    IS
    ISP3SAD300104UL
    • Options: High Actuator
    • Mounting: Solder Lug
    • Approvals: Consult Factory for Details of Approved Models

Showing 1~ 12 of 110 Products

...
