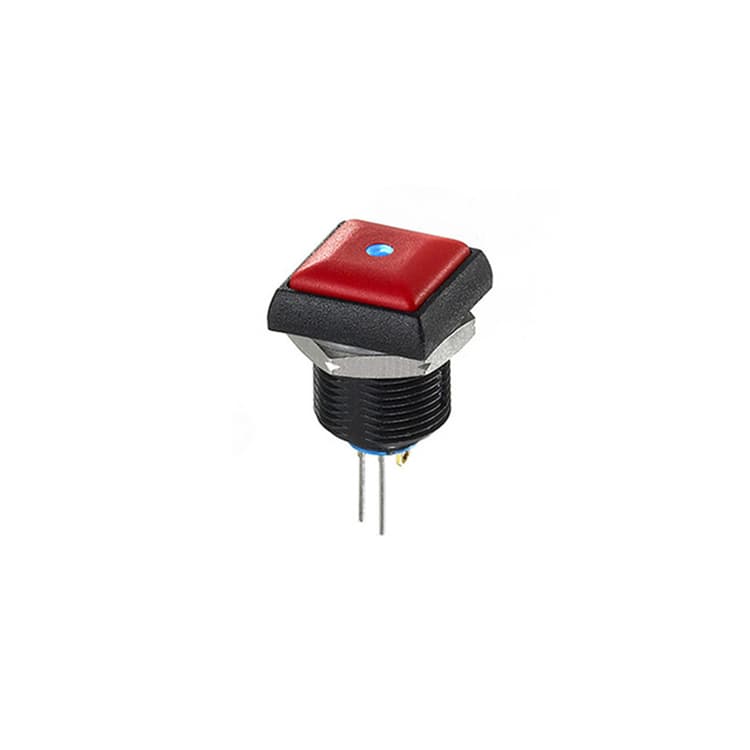

IR - latching

The IR series of sealed pushbutton switches is divided into 2 families: standard models and microswitch technology models. The standard models include numerous terminal options: solder, flying lead, straight PC, quick-connect, but also screw.

The screw terminal version, unique on the market for this type of product, withstands up to 4 amps. Moreover, the behind-panel depth of the flying lead version is the shortest on the market.

Main features

  • Sealed to IP67
  • Illuminated or non-illuminated
  • Tactile feedback
  • Square or round actuator
  • Wide choice of actuator colors
  • Wide choice of illumination colors
  • Easily customized
  • Optional marking (actuator marking is available on request for models with flat round actuator)
  • Integrated resistor
  • On flying lead illuminated versions, the LED resistor can be integrated into the product by APEM upon request
Product detail
Product detail

Key Features

• Panel thickness: 8 mm (.314) max. • Total travel: 2.5 mm (.098) +/- 0,3 mm • Typical operating force: 5 N +/- 2 N • Low level or mechanical life: 200,000 cycles • Torque: 0.8 Nm max. applied to nut • Soldering: 320 °C max. for 3 sec.
35 Products
Filters
  1. image placeholder
    IR - latching
    IRR1S722L0G
    • Terminals: Solder Lug
    • LED Color : Green
    • Illumination: Central Lens
  2. image placeholder
    IR - latching
    IRR1S722
    • Terminals: Solder Lug
    • Illumination: Non-Illuminated
    • Bushing Bezel: Black Standard
  3. image placeholder
    IR - latching
    IRR1S462L0S
    • Terminals: Solder Lug
    • Illumination: Central Lens
    • Bushing Bezel: Black Standard
  4. image placeholder
    IR - latching
    IRR1S462
    • Terminals: Solder Lug
    • Illumination: Non-Illuminated
    • Bushing Bezel: Black Standard
  5. image placeholder
    IR - latching
    IRR1S422L0S
    • Terminals: Solder Lug
    • Illumination: Central Lens
    • Bushing Bezel: Black Standard
  6. image placeholder
    IR - latching
    IRR1S422L0G
    • Terminals: Solder Lug
    • LED Color : Green
    • Illumination: Central Lens
  7. image placeholder
    IR - latching
    IRR1S422L0B
    • Terminals: Solder Lug
    • LED Color : Blue
    • Illumination: Central Lens
  8. image placeholder
    IR - latching
    IRR1S422
    • Terminals: Solder Lug
    • Illumination: Non-Illuminated
    • Bushing Bezel: Black Standard
  9. image placeholder
    IR - latching
    IRR1S420B0B
    • Terminals: Solder Lug
    • LED Color : Blue
    • Illumination: Bezel Round Only
  10. image placeholder
    IR - latching
    IRR1S412L0S
    • Terminals: Solder Lug
    • Illumination: Central Lens
    • Bushing Bezel: Black Standard
  11. image placeholder
    IR - latching
    IRR1S412L0B
    • Terminals: Solder Lug
    • LED Color : Blue
    • Illumination: Central Lens
  12. image placeholder
    IR - latching
    IRR1S412
    • Terminals: Solder Lug
    • Illumination: Non-Illuminated
    • Bushing Bezel: Black Standard

Showing 1~ 12 of 35 Products
