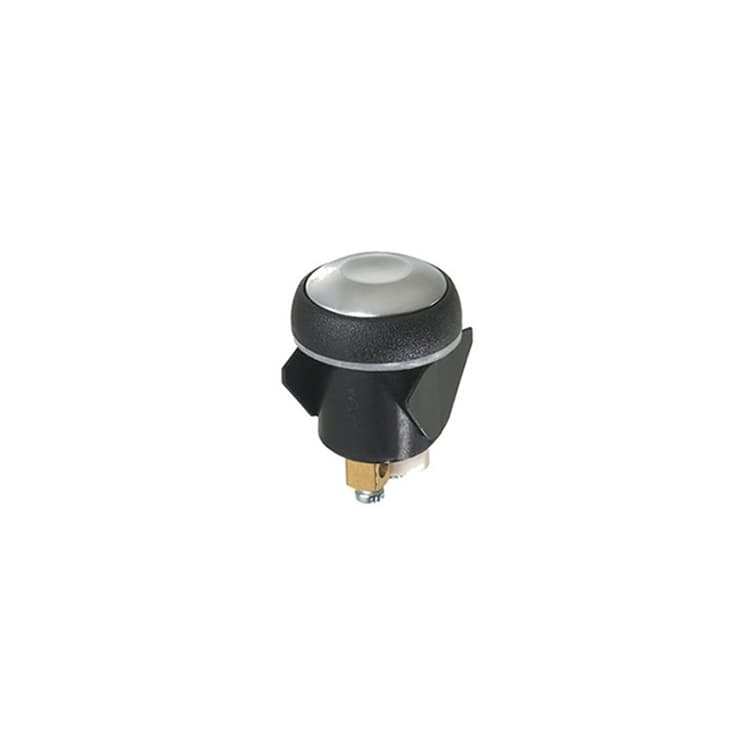

IQ - momentary

The IQ series is a range of sealed pushbutton switches featuring snap-in mounting for easier and faster installation. Faster installation = time and cost savings.

Main features

  • Snap-in mounting for easy installation
  • Dia.16 mm bushing
  • Tactile feedback
  • Illuminated or non-illuminated
  • Wide choice of actuator and illumination colors
  • Flat round actuator for optional marking
  • Five terminal options, including screw terminals
  • Silver contacts for screw terminal types, gold plated contacts for other types
  • Sealed to IP54
Product detail
Product detail

Key Features

• Panel thickness: with flat seal : 2.20 mm (.088) max. without flat seal: 3 mm (.118) max. • Total travel: 1.6 mm (.062) +/- 0.3 mm • Typical operating force: 4N +/- 2N • Low level or mechanical life: 1,000,000 cycles • Soldering: 320 °C max. for 3 sec.
86 Products
Filters
  1. image placeholder
    IQ - momentary
    IQP3S762L0S
    • Mounting: Solder Lug
    • LED Color : Super Red
    • Bushing Bezel: Black Standard
  2. image placeholder
    IQ - momentary
    IQP3F452L0B
    • Mounting: Flying Leads
    • LED Color : Blue
    • Bushing Bezel: Black Standard
  3. image placeholder
    IQ - momentary
    IQP3F432LSG
    • Mounting: Flying Leads
    • LED Color : Red/Green
    • Bushing Bezel: Black Standard
  4. image placeholder
    IQ - momentary
    IQC3P4B2L0B
    • Mounting: Straight PC
    • LED Color : Blue
    • Bushing Bezel: Black Standard
  5. image placeholder
    IQ - momentary
    IQR3F722L0Y
    • Mounting: Flying Leads
    • LED Color : Yellow
    • Bushing Bezel: Black Standard
  6. image placeholder
    IQ - momentary
    IQP3S422L0W
    • Mounting: Solder Lug
    • LED Color : White
    • Bushing Bezel: Black Standard
  7. image placeholder
    IQ - momentary
    IQP3F442L0Y
    • Mounting: Flying Leads
    • LED Color : Yellow
    • Bushing Bezel: Black Standard
  8. image placeholder
    IQ - momentary
    IQC3Z732
    • Mounting: Quick Connect Non-Illuminated
    • LED Color : Non-Illuminated
    • Bushing Bezel: Black Standard
  9. image placeholder
    IQ - momentary
    IQC3S4A2L0B
    • Mounting: Solder Lug
    • LED Color : Blue
    • Bushing Bezel: Black Standard
  10. image placeholder
    IQ - momentary
    IQR3S732L0S
    • Mounting: Solder Lug
    • LED Color : Super Red
    • Bushing Bezel: Black Standard
  11. image placeholder
    IQ - momentary
    IQR3P4B2L0S
    • Mounting: Straight PC
    • LED Color : Super Red
    • Bushing Bezel: Black Standard
  12. image placeholder
    IQ - momentary
    IQR3F732LSG
    • Mounting: Flying Leads
    • LED Color : Red/Green
    • Bushing Bezel: Black Standard

Showing 1~ 12 of 86 Products

...
