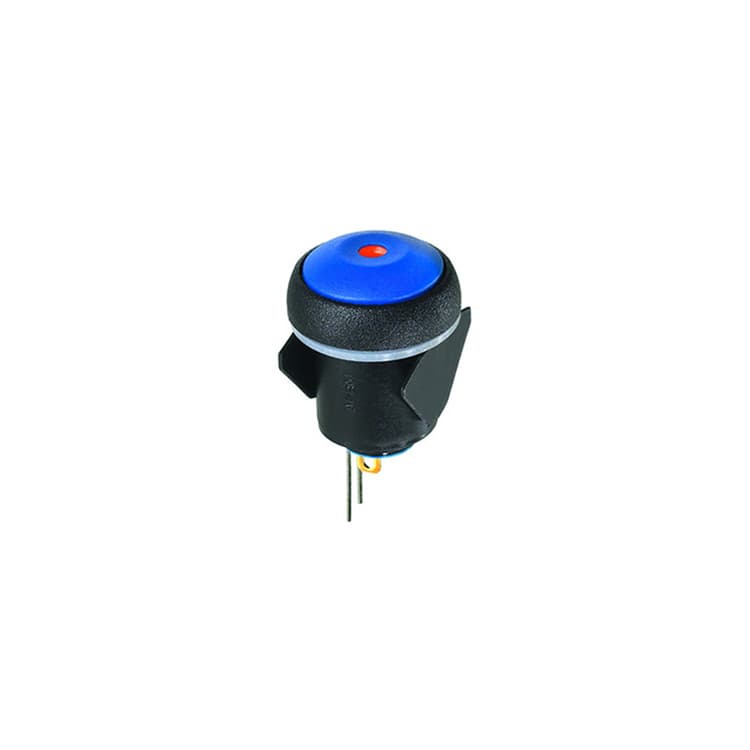

IQ - latching

Like the IR series, the IQ series is a range of sealed pushbutton switches with a 16 mm diameter bushing. The IQ series pushbuttons feature snap-in mounting for easier and faster installation. Available with illuminated or non-illumination and sealed to IP54.

Main features

  • Snap-in mounting for easy installation
  • Tactile feedback
  • Illuminated or non-illuminated
  • Square or round actuator
  • Wide choice of actuator and illumination colors
  • Flat round actuator for optional marking
  • Electrical function: OFF-ON
  • Four terminal options
  • Gold plated contacts

Typical Applications

  • Defense
  • Industrial automation
  • Transport
  • Security
  • Communications
  • Instrumentation
  • Medical
  • Automotive
Product detail
Product detail

Key Features

• Panel thickness : with flat seal: 2.20 mm (.088) max. without flat seal: 3 mm (.118) max. • Total travel: 2.5 mm (.098) +/- 0,3 mm • Typical operating force: 5 N +/- 2 N • Low level or mechanical life: 200,000 cycles • Soldering: 320 °C max. for 3 sec.
90 Products
Filters
  1. image placeholder
    IQ - latching
    IQR1F492L0Y
    • Mounting: Flying Leads
    • LED Color : Yellow
    • Bushing Bezel: Black Standard
  2. image placeholder
    IQ - latching
    IQR1F422
    • Mounting: Flying Leads
    • LED Color : Non-Illuminated
    • Bushing Bezel: Black Standard
  3. image placeholder
    IQ - latching
    IQP1Z492
    • Mounting: Quick Connect
    • LED Color : Non-Illuminated
    • Bushing Bezel: Black Standard
  4. image placeholder
    IQ - latching
    IQF1P772
    • Mounting: Straight PC
    • LED Color : Non-Illuminated
    • Bushing Bezel: Black Standard
  5. image placeholder
    IQ - latching
    IQC1P452L0B
    • Mounting: Straight PC
    • LED Color : Blue
    • Bushing Bezel: Black Standard
  6. image placeholder
    IQ - latching
    IQR1S492L0B
    • Mounting: Solder Lug
    • LED Color : Blue
    • Bushing Bezel: Black Standard
  7. image placeholder
    IQ - latching
    IQR1F422L0S
    • Mounting: Flying Leads
    • LED Color : Super Red
    • Bushing Bezel: Black Standard
  8. image placeholder
    IQ - latching
    IQP1F722L0Y
    • Mounting: Flying Leads
    • LED Color : Yellow
    • Bushing Bezel: Black Standard
  9. image placeholder
    IQ - latching
    IQF1Z4B2L0S
    • Mounting: Quick Connect
    • LED Color : Super Red
    • Bushing Bezel: Black Standard
  10. image placeholder
    IQ - latching
    IQC1Z792L0G
    • Mounting: Quick Connect
    • LED Color : Green
    • Bushing Bezel: Black Standard
  11. image placeholder
    IQ - latching
    IQR1Z772L0S
    • Mounting: Quick Connect
    • LED Color : Super Red
    • Bushing Bezel: Black Standard
  12. image placeholder
    IQ - latching
    IQR1Z712L0G
    • Mounting: Quick Connect
    • LED Color : Green
    • Bushing Bezel: Black Standard

Showing 1~ 12 of 90 Products

...
