IP - momentary

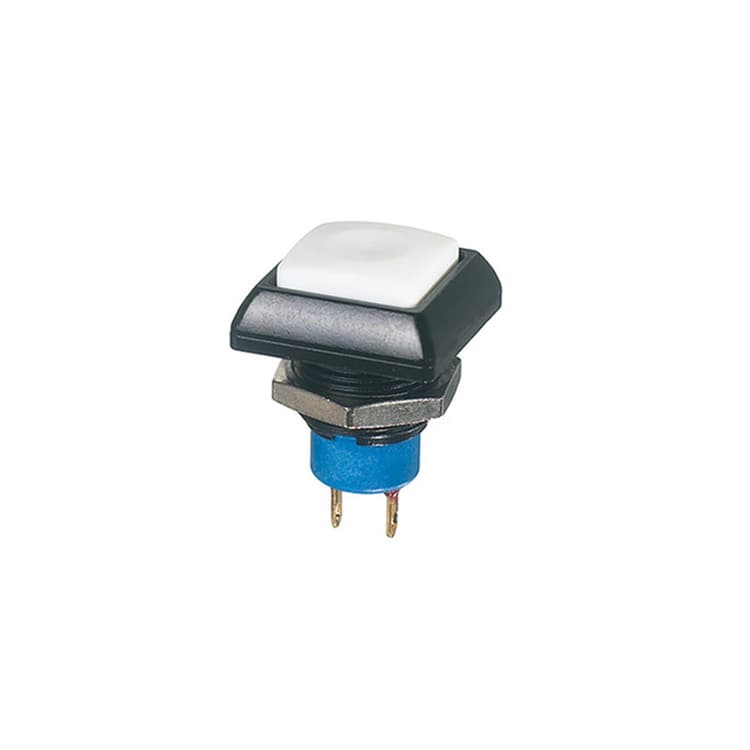

Illuminated or non-illuminated momentary action pushbuttons for harsh environments, sealed to IP67. Round or square actuator, available in many different colors. Numerous terminal options, gold plated silver contacts.

Main features

  • Normally open (NO) or NC/NO combined (non-illuminated only)
  • Variety of terminal options
  • Flat round actuator for optional marking
  • High brightness illumination
  • Tin plated LED terminals
  • Operating temperature: -40 °C to +85 °C (-40 °F to 185 °F)

Additional sealing

  • For ROUND plungers only, illuminated or non-illuminated
  • By silicone boot for protection against frost and abrasion by sand. Order separately.
    • transparent: U5125
    • blue: U5125-1
    • black: U5125-2
    • red: U5125-6
Product detail
Product detail

Key Features

• Panel thickness: 1.5 mm (.059) min. , 4 mm (.157 max.) • Total travel: Function 3: 1.7 mm (.067) +/- 0.3 mm Function 5: 1.3 mm (.051) +/- 0.3 mm • Typical operating force : 6N +/- 2N • Low level/mechanical life: 1,000,000 cycles • Torque: 1.5 Nm max. applied to nut • Soldering: 320°C max. for 3 sec.
386 Products
Filters
  1. image placeholder
    IP - momentary
    IPR5SCD6104
    • Options: High Actuator, Non-Illuminated, Round Models Only
    • Mounting: Solder Lug
    • Actuator Colors: Red
  2. image placeholder
    IP - momentary
    IPR5SCD5104
    • Options: High Actuator, Non-Illuminated, Round Models Only
    • Mounting: Solder Lug
    • Actuator Colors: Yellow
  3. image placeholder
    IP - momentary
    IPR5SAD9
    • Mounting: Solder Lug
    • Actuator Colors: Orange
    • Contact Materials: Silver (Gold-Plated)
  4. image placeholder
    IP - momentary
    IPR5SAD7/1
    • Mounting: Solder Lug
    • Actuator Colors: White
    • Contact Materials: Silver (Gold-Plated)
  5. image placeholder
    IP - momentary
    IPR5SAD6
    • Mounting: Solder Lug
    • Actuator Colors: Red
    • Contact Materials: Silver (Gold-Plated)
  6. image placeholder
    IP - momentary
    IPR5SAD5
    • Mounting: Solder Lug
    • Actuator Colors: Yellow
    • Contact Materials: Silver (Gold-Plated)
  7. image placeholder
    IP - momentary
    IPR5SAD3
    • Mounting: Solder Lug
    • Actuator Colors: Green
    • Contact Materials: Silver (Gold-Plated)
  8. image placeholder
    IP - momentary
    IPR5SAD1
    • Mounting: Solder Lug
    • Actuator Colors: Blue
    • Contact Materials: Silver (Gold-Plated)
  9. image placeholder
    IP - momentary
    IPR5FAD7/1
    • Mounting: Flying Leads Standard
    • Actuator Colors: White
    • Contact Materials: Silver (Gold-Plated)
  10. image placeholder
    IP - momentary
    IPR5FAD6
    • Mounting: Flying Leads Standard
    • Actuator Colors: Red
    • Contact Materials: Silver (Gold-Plated)
  11. image placeholder
    IP - momentary
    IPR5FAD5
    • Mounting: Flying Leads Standard
    • Actuator Colors: Yellow
    • Contact Materials: Silver (Gold-Plated)
  12. image placeholder
    IP - momentary
    IPR5FAD3
    • Mounting: Flying Leads Standard
    • Actuator Colors: Green
    • Contact Materials: Silver (Gold-Plated)

Showing 1~ 12 of 386 Products

...
