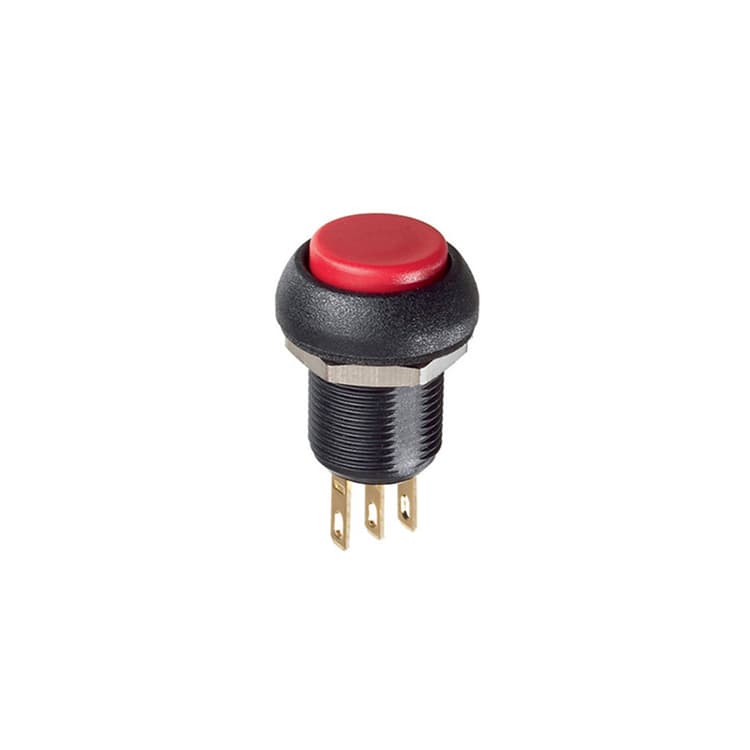

IM

Harsh, noisy environments, including those involving vibrations, make the use of a sealed switch with a confirming “click” imperative. The IM series, with its strong & audible tactile feedback, responds to those needs.

Main features

  • Snap-action mechanism: audible tactile feedback, high voltage rating.
  • Enhanced safety, resistance to shocks and vibrations
  • Light plastic case
  • 2 bezel diameters
  • matching the I series range design
  • Ergonomically adapted for use in tight spaces (handles& vehicles)
  • IP67 frontal sealing
  • 1 million mechanical lifecycle (or low level current),
  • NC+NO function.
  • Highly reliable in the harshest environments.
Product detail
Product detail

Key Features

• Panel thickness: 1.5 mm (.059) to 10 mm (.394) • Total travel: 1.7 mm (.067) +/- 0.3 mm • Low level or mechanical life: 1,000,000 cycles • Torque (applied to nut): 1 Nm max. with metal nut U166 - 1.5 Nm max. with plastic nut U4248
222 Products
Filters
  1. image placeholder
    IM
    IMP7P492075104UL
    • Bezel: Reduced Bezel Front Mounting
    • Terminals: Straight PC
    • Bushing Bezel: Black
  2. image placeholder
    IM
    IMR7Z432075UL
    • Bezel: Reduced Bezel Front Mounting
    • Terminals: Quick Connect
    • Bushing Bezel: Black
  3. image placeholder
    IM
    IMR7Z412234104UL
    • Bezel: Reduced Bezel Standard Mounting
    • Terminals: Quick Connect
    • Bushing Bezel: Black
  4. image placeholder
    IM
    IMR7Z432075104UL
    • Bezel: Reduced Bezel Front Mounting
    • Terminals: Quick Connect
    • Bushing Bezel: Black
  5. image placeholder
    IM
    IMR7P472075UL
    • Bezel: Reduced Bezel Front Mounting
    • Terminals: Straight PC
    • Bushing Bezel: Black
  6. image placeholder
    IM
    IMR7P452104UL
    • Bezel: Standard
    • Terminals: Straight PC
    • Bushing Bezel: Black
  7. image placeholder
    IM
    IMR7P492075104UL
    • Bezel: Reduced Bezel Front Mounting
    • Terminals: Straight PC
    • Bushing Bezel: Black
  8. image placeholder
    IM
    IMP7Z452104UL
    • Bezel: Standard
    • Terminals: Quick Connect
    • Bushing Bezel: Black
  9. image placeholder
    IM
    IMR7Z472075104UL
    • Bezel: Reduced Bezel Front Mounting
    • Terminals: Quick Connect
    • Bushing Bezel: Black
  10. image placeholder
    IM
    IMR7P422234104UL
    • Bezel: Reduced Bezel Standard Mounting
    • Terminals: Straight PC
    • Bushing Bezel: Black
  11. image placeholder
    IM
    IMR7Z492234UL
    • Bezel: Reduced Bezel Standard Mounting
    • Terminals: Quick Connect
    • Bushing Bezel: Black
  12. image placeholder
    IM
    IMR7P412075UL
    • Bezel: Reduced Bezel Front Mounting
    • Terminals: Straight PC
    • Bushing Bezel: Black

Showing 1~ 12 of 222 Products

...
